RIEGLER Cross fitting, Pipe exterior Ø8mm, galvanised steel
Typennummer: KV8SST
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Cross screw fitting made of galvanized steel (DIN 2353), for pneumatic installation - type KV8SST
The RIEGLER cross union, pipe AØ8mm, galvanized steel creates a permanent, metal-to-metal sealing pipe connection based on the proven cutting ring principle. The housing is made of galvanized steel (DIN 2353). Permanently tight - even with vibration and temperature fluctuations.
Field of application
Typical areas of application: Compressed air distribution, hydraulics and process technology.
| Material | Galvanized steel (DIN 2353) |
| SW 1 | 19 mm |
| SW 2 | 14 mm |
| Tube outer Ø | 8 mm |
| PN | 630 bar |
| L1 | 63 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[159733] RIEGLER Cross fitting, Pipe exterior Ø10mm, galvanised steel](/web/image/product.template/216128/image_128/%5B159733%5D%20RIEGLER%20Cross%20fitting%2C%20Pipe%20exterior%20%C3%9810mm%2C%20galvanised%20steel?unique=2d29832)
|
Typennummer: KV10SST |
26.83 € | |
![[159734] RIEGLER Cross fitting, Pipe exterior Ø12mm, galvanised steel](/web/image/product.template/216129/image_128/%5B159734%5D%20RIEGLER%20Cross%20fitting%2C%20Pipe%20exterior%20%C3%9812mm%2C%20galvanised%20steel?unique=ebc7740)
|
Typennummer: KV12SST |
28.46 € | |
![[159735] RIEGLER Cross fitting, Pipe exterior Ø14mm, galvanised steel](/web/image/product.template/216130/image_128/%5B159735%5D%20RIEGLER%20Cross%20fitting%2C%20Pipe%20exterior%20%C3%9814mm%2C%20galvanised%20steel?unique=6a1b187)
|
Typennummer: KV14SST |
42.40 € | |
![[159736] RIEGLER Cross fitting, Pipe exterior Ø16mm, galvanised steel](/web/image/product.template/216131/image_128/%5B159736%5D%20RIEGLER%20Cross%20fitting%2C%20Pipe%20exterior%20%C3%9816mm%2C%20galvanised%20steel?unique=2f1c679)
|
Typennummer: KV16SST |
41.54 € | |
![[159737] RIEGLER Cross fitting, Pipe exterior Ø20mm, galvanised steel](/web/image/product.template/216132/image_128/%5B159737%5D%20RIEGLER%20Cross%20fitting%2C%20Pipe%20exterior%20%C3%9820mm%2C%20galvanised%20steel?unique=28e126a)
|
Typennummer: KV20SST |
59.69 € | |
![[159738] RIEGLER Cross fitting, Pipe exterior Ø25mm, galvanised steel](/web/image/product.template/216133/image_128/%5B159738%5D%20RIEGLER%20Cross%20fitting%2C%20Pipe%20exterior%20%C3%9825mm%2C%20galvanised%20steel?unique=b871374)
|
Typennummer: KV25SST |
74.35 € | |

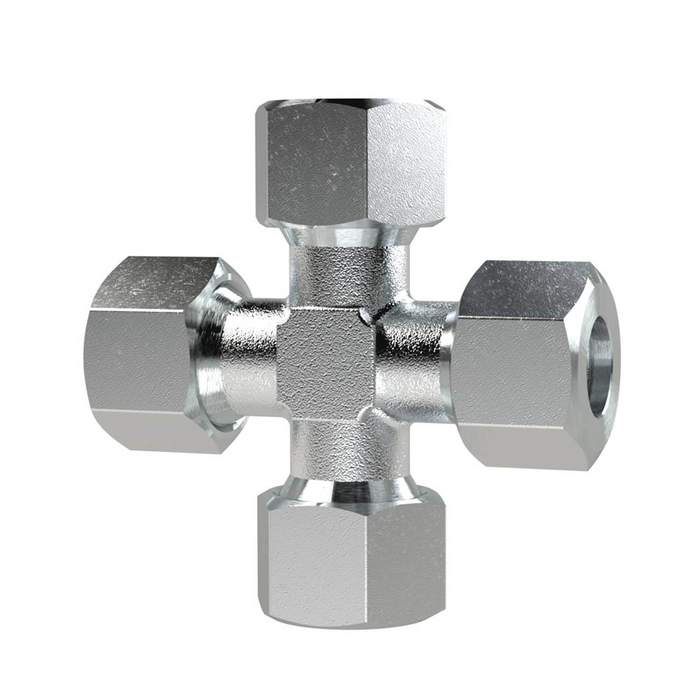

![[159731] RIEGLER Cross fitting, Pipe exterior Ø6mm, galvanised steel](/web/image/product.template/216126/image_128/%5B159731%5D%20RIEGLER%20Cross%20fitting%2C%20Pipe%20exterior%20%C3%986mm%2C%20galvanised%20steel?unique=4c20d68)
|
