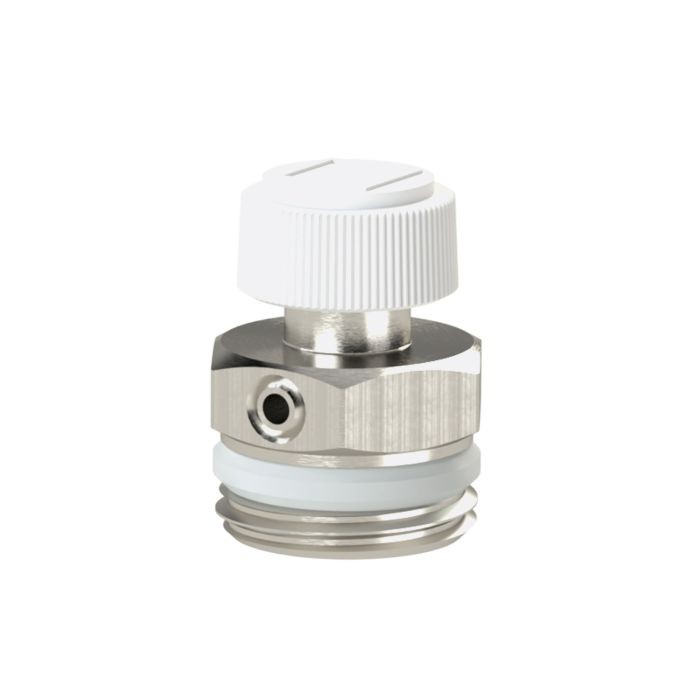

RIEGLER Air Vent Valve, Chrome-Plated Brass, G 1/2, 10 bar
Part Number: ELVT.MSV.G12
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Chrome-plated brass relief valve for pneumatic and automation applications – Type ELVT.MSV.G12
The RIEGLER air release valve, chrome-plated brass, G 1/2, 10 bar, controls compressed air flows precisely and reliably. The body is made of chrome-plated brass with PTFE seals. G 1/2 male thread connection—compatible with common industry standards. Used for venting water-filled heating circuits. Designed for precise switching operations during continuous operation.
Scope of Application
Typical applications: Drain and vent valves; drain and vent valves in compressed air and pneumatic systems.
| Sealing material | PTFE |
| Max. operating pressure | 10 bar |
| Installation position | Vent hole downwards |
| Handwheel | POM |
| Operating temperature max. | 90 °C |
| Valve body | Chrome-plated brass |
| Thread | G 1/2 AG |
| DN | 15 mm |
| SW | 21 mm |
| A | 18 mm |
| B | 27 mm |
| C | 5.5 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| REACH Info | contains SVHC substance |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[163000] RIEGLER Air Release Valve, Chrome-Plated Brass, G 1/4, 10 bar](/web/image/product.template/336334/image_128/%5B163000%5D%20RIEGLER%20Air%20Release%20Valve%2C%20Chrome-Plated%20Brass%2C%20G%201-4%2C%2010%20bar?unique=6dd9584)
|
Part Number: ELVT.MSV.G14 |
3.01 € | |

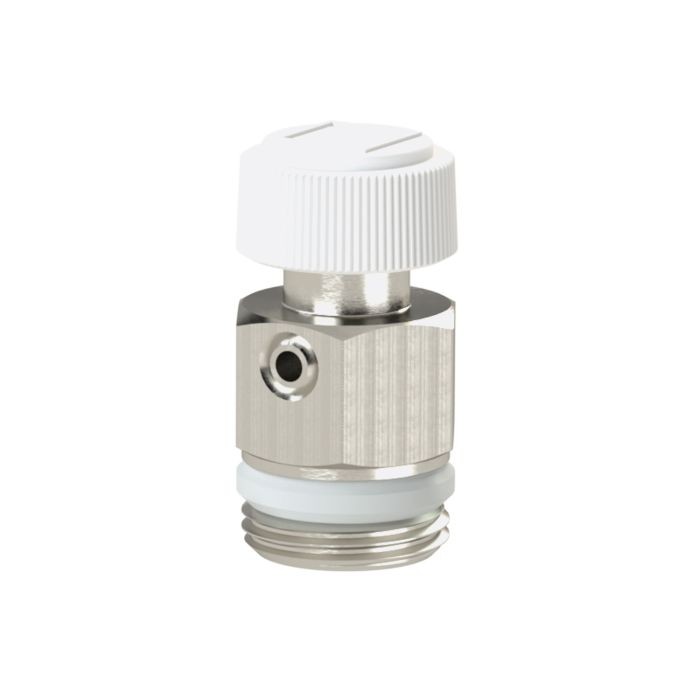

![[163001] RIEGLER Air Release Valve, Chrome-Plated Brass, G 3/8, 10 bar](/web/image/product.template/336336/image_128/%5B163001%5D%20RIEGLER%20Air%20Release%20Valve%2C%20Chrome-Plated%20Brass%2C%20G%203-8%2C%2010%20bar?unique=43c9d90)
|
Part Number: ELVT.MSV.G38 |
5.16 € | |
