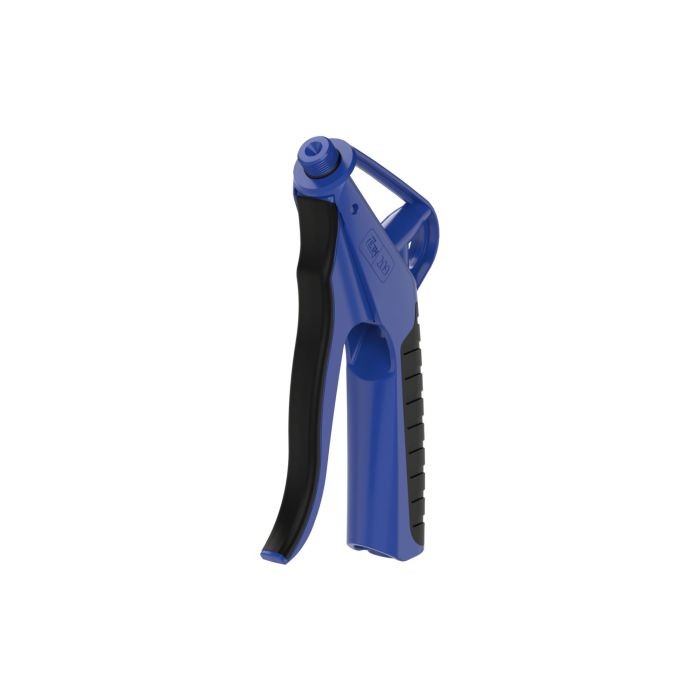

RIEGLER Adjustable-Flow Basic Air Gun without Nozzle, POM, Rc 1/4 AG, Rc 1/4 IG
Model Number: 36 K/T.209
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Adjustable-flow basic air gun without nozzle (compressed air gun) for workshops and industry – Model 36 K/T.209
The RIEGLER Adjustable-Flow Basic Air Gun without Nozzle, POM, Rc 1/4 AG, Rc 1/4 IG enables powerful, precise work with compressed air. The housing is made of POM. The permissible medium temperature ranges from -20 °C to 60 °C. Rc 1/4 female connection—compatible with common industrial standards. The gun delivers high blowing power; soft-grip surfaces on the handle and lever ensure a secure grip. The bracket allows for multiple mounting positions, and the robust yet lightweight design ensures a long service life. Thanks to its ergonomic shape, it is suitable for both right- and left-handed users. Ergonomic operation ensures fatigue-free work.
Scope of Application
Typical applications: Dosable base blow guns, blow guns, and air-blow guns in compressed air and pneumatic systems.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Connection thread | Rc 1/4 AG |
| Max. operating pressure | 16 bar |
| Material | POM |
| Gun body | POM |
| Connection type | Rc 1/4 IG |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| REACH Info | contains SVHC substance |
| Manufacturer type | Series 209 blowgun |
| Theme shop | SAFETY |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[163283] RIEGLER Adjustable-Flow Base Blow Gun without Nozzle, POM, Rc 1/4, LW 13 Nozzle](/web/image/product.template/336362/image_128/%5B163283%5D%20RIEGLER%20Adjustable-Flow%20Base%20Blow%20Gun%20without%20Nozzle%2C%20POM%2C%20Rc%201-4%2C%20LW%2013%20Nozzle?unique=98a57f4)
|
Model Number: 36 C.209 |
28.94 € | |
![[163281] RIEGLER Adjustable-Flow Base Blow Gun without Nozzle, POM, Rc 1/4, LW 6 Fitting](/web/image/product.template/336363/image_128/%5B163281%5D%20RIEGLER%20Adjustable-Flow%20Base%20Blow%20Gun%20without%20Nozzle%2C%20POM%2C%20Rc%201-4%2C%20LW%206%20Fitting?unique=98a57f4)
|
Model Number: 36 A.209 |
28.79 € | |

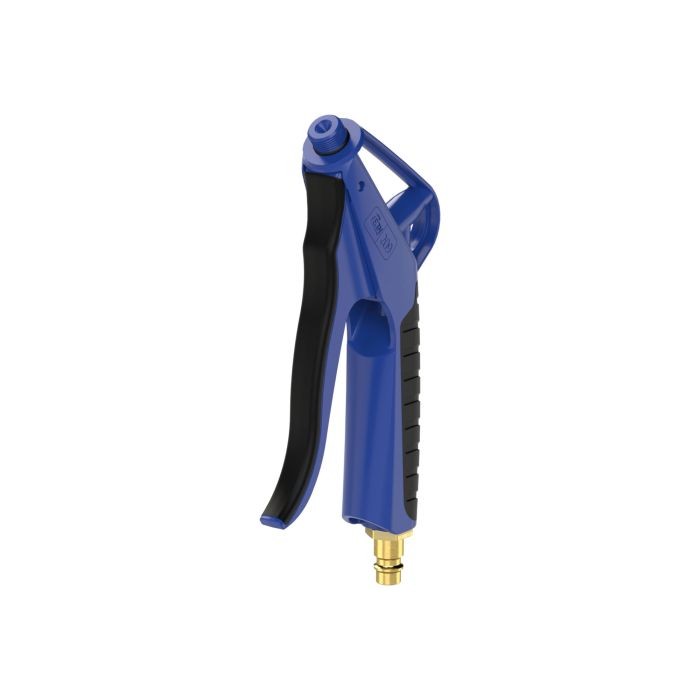

![[163282] RIEGLER Adjustable-Flow Base Blow Gun without Nozzle, POM, Rc 1/4, LW 9 Nozzle](/web/image/product.template/336364/image_128/%5B163282%5D%20RIEGLER%20Adjustable-Flow%20Base%20Blow%20Gun%20without%20Nozzle%2C%20POM%2C%20Rc%201-4%2C%20LW%209%20Nozzle?unique=98a57f4)
|
Model Number: 36 B.209 |
28.81 € | |
![[163284] RIEGLER Adjustable-Flow Base Blow Gun without Nozzle, POM, Rc1/4, Nipple NW7.2–7.8](/web/image/product.template/336360/image_128/%5B163284%5D%20RIEGLER%20Adjustable-Flow%20Base%20Blow%20Gun%20without%20Nozzle%2C%20POM%2C%20Rc1-4%2C%20Nipple%20NW7.2%E2%80%937.8?unique=98a57f4)
|
Model Number: 36 K.209 |
28.82 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[142249] RIEGLER Blow gun holder, incl. 2 brackets](/web/image/product.template/210704/image_128/%5B142249%5D%20RIEGLER%20Blow%20gun%20holder%2C%20incl.%202%20brackets?unique=d66424e)
|
Type number: BPH-1 |
10.95 € | |

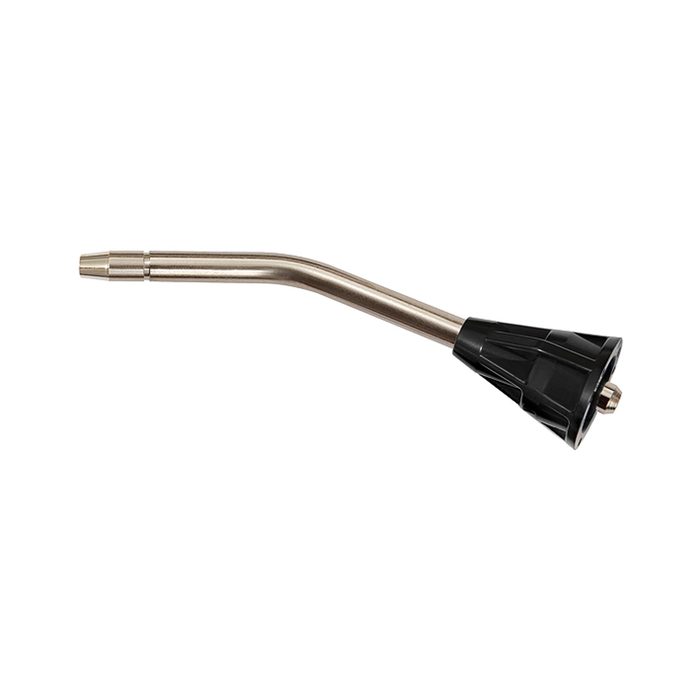

![[114402] RIEGLER Extension pipe, Blow pipe, Standard nozzle, 90 mm curved](/web/image/product.template/190963/image_128/%5B114402%5D%20RIEGLER%20Extension%20pipe%2C%20Blow%20pipe%2C%20Standard%20nozzle%2C%2090%20mm%20curved?unique=00812a9)
|
Type number: 37.090 |
3.53 € | |
![[114403] RIEGLER Extension pipe, Standard nozzle, 300 mm straight](/web/image/product.template/190965/image_128/%5B114403%5D%20RIEGLER%20Extension%20pipe%2C%20Standard%20nozzle%2C%20300%20mm%20straight?unique=00812a9)
|
Type number: 37.300 |
11.22 € | |
![[114404] RIEGLER Extension pipe, Standard nozzle, 500 mm straight](/web/image/product.template/190967/image_128/%5B114404%5D%20RIEGLER%20Extension%20pipe%2C%20Standard%20nozzle%2C%20500%20mm%20straight?unique=00812a9)
|
Type number: 37.500 |
12.78 € | |
![[114405] RIEGLER Flexible extension pipe, Standard nozzle, 400 mm flexible](/web/image/product.template/190969/image_128/%5B114405%5D%20RIEGLER%20Flexible%20extension%20pipe%2C%20Standard%20nozzle%2C%20400%20mm%20flexible?unique=d6ae27d)
|
Type number: 37.400 |
17.95 € | |

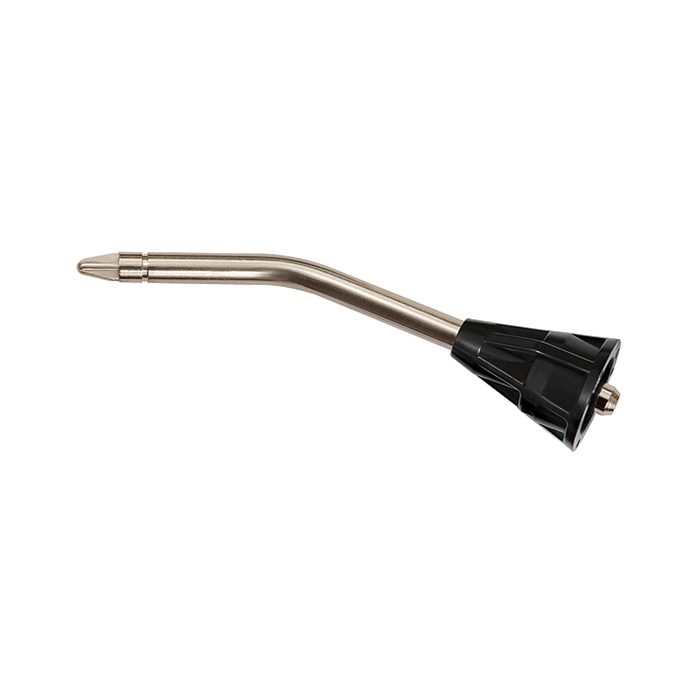

![[114406] RIEGLER Extension pipe, Blow pipe, Star tip nozzle, 90 mm curved](/web/image/product.template/190971/image_128/%5B114406%5D%20RIEGLER%20Extension%20pipe%2C%20Blow%20pipe%2C%20Star%20tip%20nozzle%2C%2090%20mm%20curved?unique=00812a9)
|
Type number: 38.090 |
5.26 € | |
![[114407] RIEGLER Extension pipe, Star-tip nozzle, 300 mm straight](/web/image/product.template/190973/image_128/%5B114407%5D%20RIEGLER%20Extension%20pipe%2C%20Star-tip%20nozzle%2C%20300%20mm%20straight?unique=00812a9)
|
Type number: 38.300 |
18.90 € | |
![[114408] RIEGLER Extension pipe, Star-tip nozzle, 500 mm straight](/web/image/product.template/190974/image_128/%5B114408%5D%20RIEGLER%20Extension%20pipe%2C%20Star-tip%20nozzle%2C%20500%20mm%20straight?unique=00812a9)
|
Type number: 38.500 |
19.09 € | |
