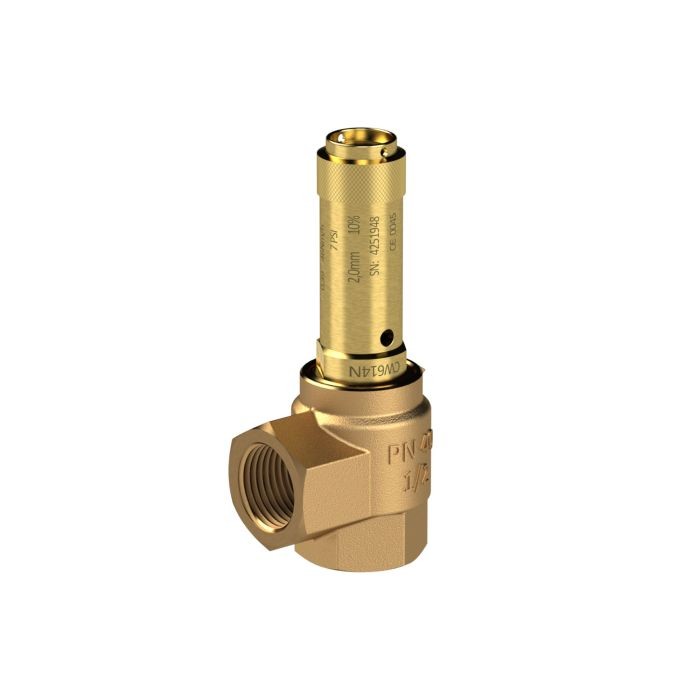

RIEGLER Corner Safety Valve, Saturated Steam, G 3/4, Response Pressure 1.2 bar
Part Number: 222.04-1,2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
163341EAN :
4047322875738Category :
Safety Valves & Pressure Relief ValvesWeight :
0.38 kgRIEGLER Corner Safety Valve (Pressure Relief Valve) made of red brass, for compressed air and industrial systems – Type 222.04-1.2
The RIEGLER angle-type safety valve, saturated steam, G 3/4, set pressure 1.2 bar, reliably protects systems, pipes, and vessels against excessive pressure. The body is made of red brass. The permissible medium temperature ranges from -10 °C to 150 °C. G 3/4 connection—compatible with common industrial standards. After activation, the valve closes automatically, ensuring consistently safe operation.
Scope of Application
Typical applications: Safety valves, steam safety valves, and pressure relief valves in compressed air and pneumatic systems.
| Housing | Gunmetal |
| Membrane | EPDM |
| Spring cover | Brass |
| Interior parts | Brass |
| Setting range | 0.2 - 20 bar (depending on connection size and medium) |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 150 °C |
| Spring | Carbon steel |
| Entry and exit | female thread type G according to DIN EN ISO 228-1 |
| Operating temperature | -10 °C bis 150 °C (EPDM) 225 °C (PTFE) |
| Thread | G 3/4 |
| SW | 32 mm |
| Setting range min. | 0.2 bar |
| Response pressure min. | 1.2 bar |
| H | 111 mm |
| L1 | 30 mm |
| L2 | 25 mm |
| Setting range max. | 20 bar |
| Theme shop | SAFETY |
| Class name | FLEX |
