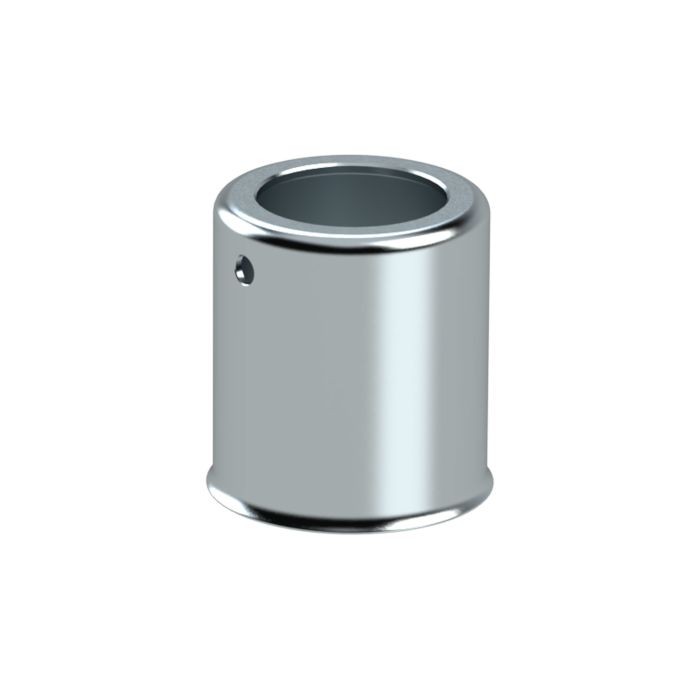

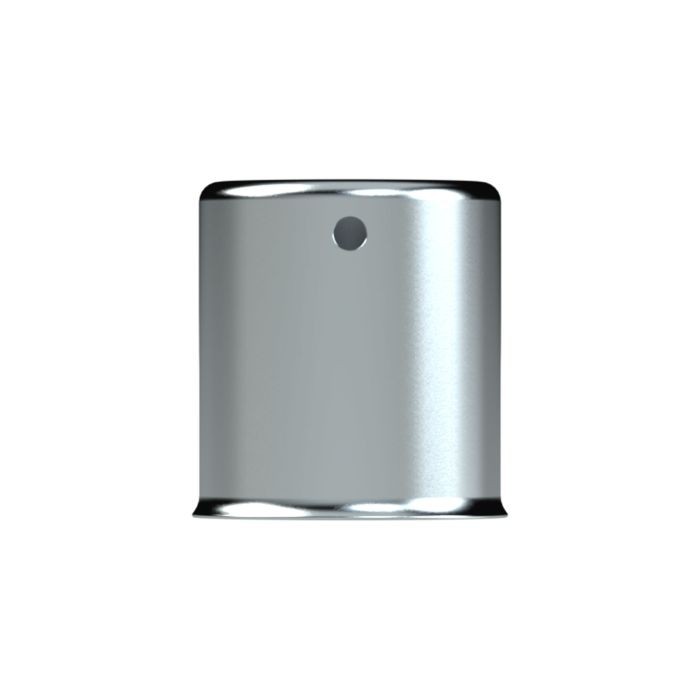

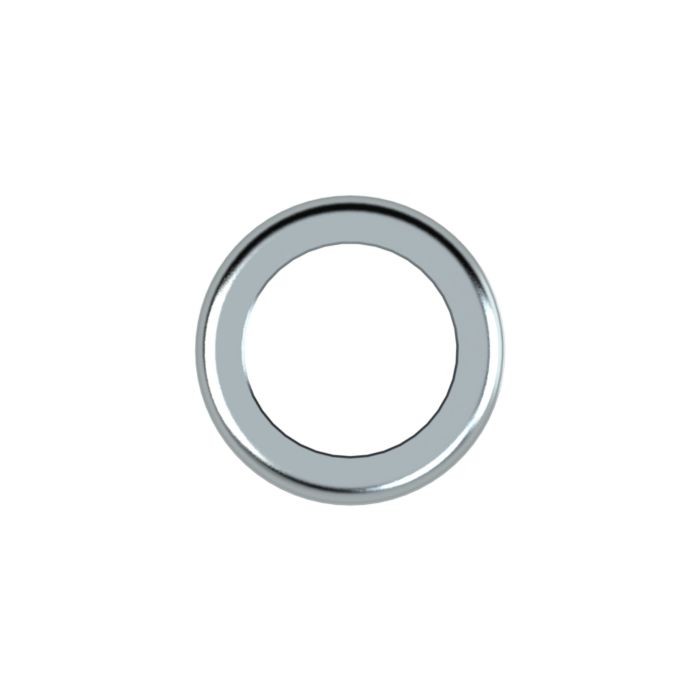

RIEGLER Hose Fitting for Low Pressure, Galvanized Steel, 16 mm Inner Diameter
Part Number: PH.SV.H16.S15
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Low-pressure hose fitting (hose nozzle) for hose assembly – Type PH.SV.H16.S15
The RIEGLER low-pressure hose fitting, made of galvanized steel with an inner diameter of 16 mm, ensures a secure, leak-tight hose connection. The housing is made of galvanized steel. For permanently leak-tight connections, even under pressure.
Scope of Application
Typical applications: Press-fit sleeves in compressed air and pneumatic systems.
| Material | Galvanized steel |
| Length | 20 mm |
| for hose outer Ø | 15 mm |
| A | 20 mm |
| B | 11.9 |
| C | 16 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

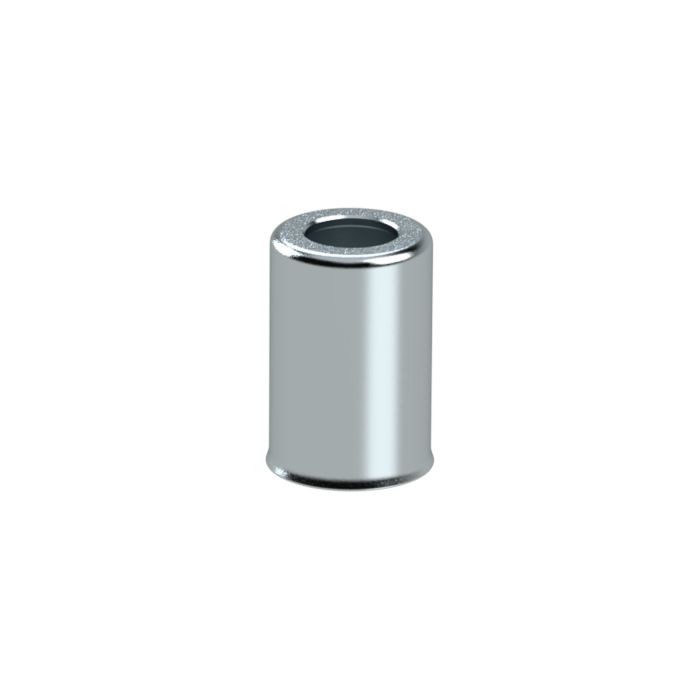

![[163945] RIEGLER Hose Fitting for Low Pressure, Galvanized Steel, 12 mm Inner Diameter](/web/image/product.template/336480/image_128/%5B163945%5D%20RIEGLER%20Hose%20Fitting%20for%20Low%20Pressure%2C%20Galvanized%20Steel%2C%2012%20mm%20Inner%20Diameter?unique=c37ca10)
|
