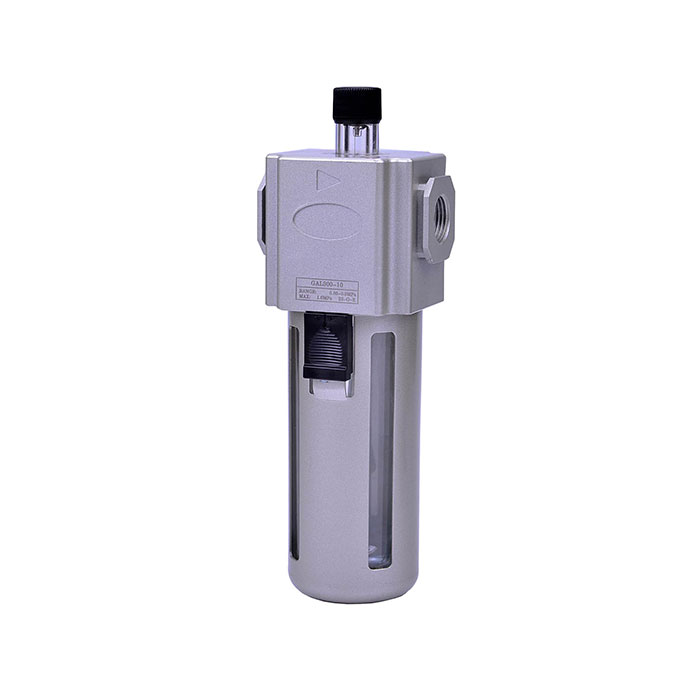

RIEGLER Mist oiler »GA«, PC container, Protective cage, Size 300, G 1/4
Typennummer: GAL 11
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mist lubricator "GA" made of die-cast aluminum, for compressed air treatment, max. 9 bar - Type GAL 11
The RIEGLER mist lubricator "GA", with PC container and protective cage, BG 300, G 1/4 doses precise quantities of oil into the compressed air flow and automatically lubricates pneumatic consumers. The housing is made of die-cast aluminum with NBR seals. The operating pressure range is 0.5 bar to 9 bar. The temperature range is between -5 °C and 70 °C. Connection thread G 1/4 - suitable for common industry standards. The flow rate is 4200 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Polycarbonate tank with protective cage. Automatic lubrication extends the service life of moving parts.
Field of application
Typical areas of application: Lubrication of pneumatic cylinders, valves and pneumatic tools.
| Inlet pressure max. | 10 bar |
| Temperature range min. | -5 °C |
| Temperature range max. | 70 °C |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | GA |
| Container | Polycarbonate container with protective cage |
| Dropper attachment | Brass/POM |
| Working pressure min. | 0.5 bar |
| Working pressure max. | 9 bar |
| Thread | G 1/4 |
| Flow rate | 4200 l/min |
| BG | 300 |
| A | 62.5 mm |
| B | 181 mm |
| C | 45 mm |
| D | 136 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[178486] RIEGLER Mist oiler »GA«, PC container, Protective cage, Size 300, G 1/2](/web/image/product.template/216376/image_128/%5B178486%5D%20RIEGLER%20Mist%20oiler%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%20300%2C%20G%201-2?unique=6ed86d5)
|
Typennummer: GAL 13 |
27.27 € | |
![[178485] RIEGLER Mist oiler »GA«, PC container, Protective cage, Size 300, G 3/8](/web/image/product.template/216375/image_128/%5B178485%5D%20RIEGLER%20Mist%20oiler%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%20300%2C%20G%203-8?unique=7cec4aa)
|
Typennummer: GAL 12 |
27.27 € | |
![[178488] RIEGLER Mist oiler »GA«, PC container, Protective cage, Size 400, G 1/2](/web/image/product.template/216378/image_128/%5B178488%5D%20RIEGLER%20Mist%20oiler%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%20400%2C%20G%201-2?unique=3099b8c)
|
Typennummer: GAL 33 |
42.22 € | |
![[178487] RIEGLER Mist oiler »GA«, PC container, Protective cage, Size 400, G 3/8](/web/image/product.template/216377/image_128/%5B178487%5D%20RIEGLER%20Mist%20oiler%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%20400%2C%20G%203-8?unique=7488609)
|
Typennummer: GAL 32 |
42.22 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

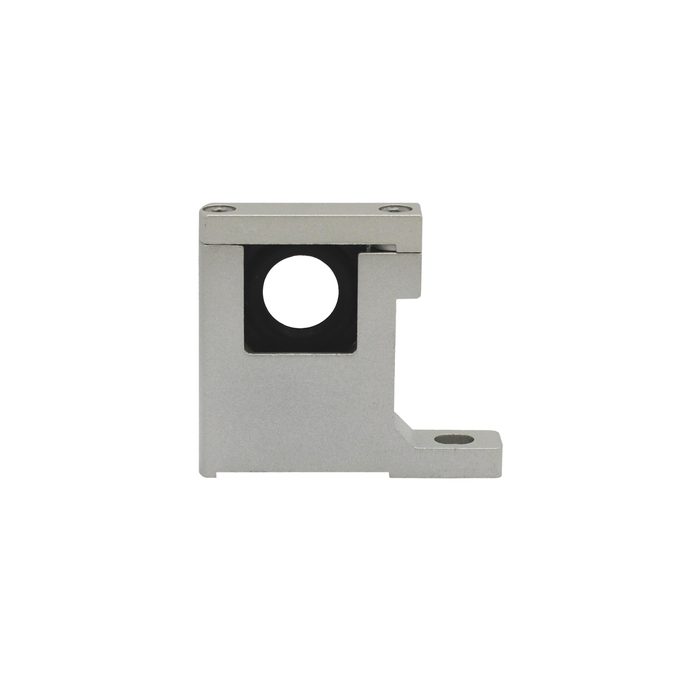

![[116516] RIEGLER Connecting element with wall mounting, 1 hole, L-shaped bracket](/web/image/product.template/201216/image_128/%5B116516%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%201%20hole%2C%20L-shaped%20bracket?unique=f8c4ffc)
|
Type number: LB 300 |
6.66 € | |

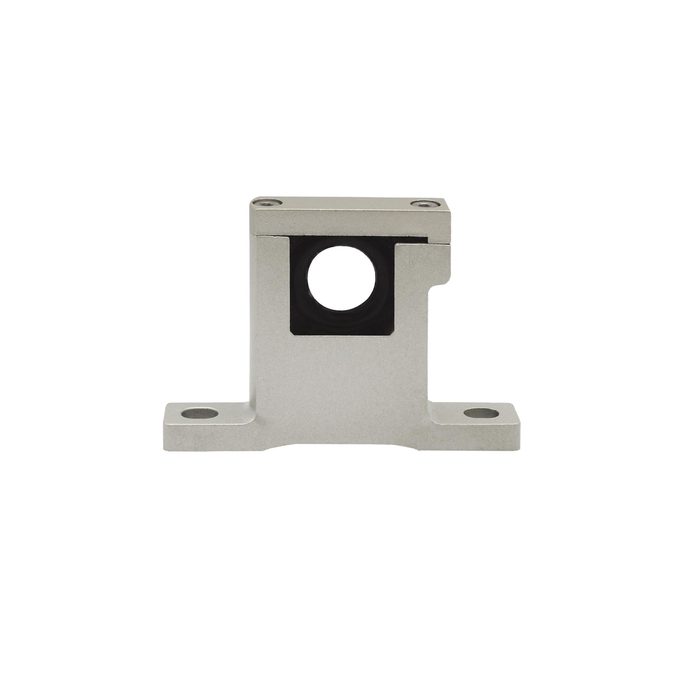

![[116609] RIEGLER Connecting element with wall mounting, 2 holes, T-shaped bracket](/web/image/product.template/202327/image_128/%5B116609%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%202%20holes%2C%20T-shaped%20bracket?unique=7a8fb85)
|
Type number: TB 300 |
6.66 € | |

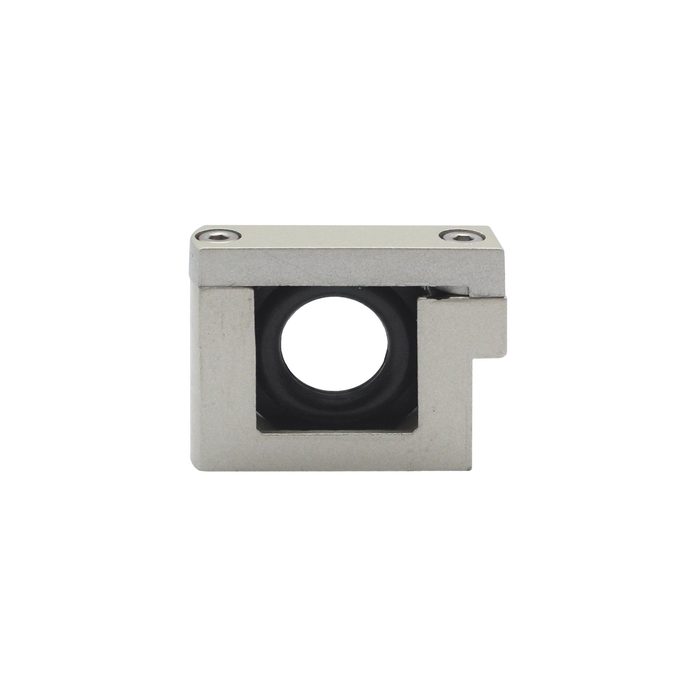

![[116613] RIEGLER Connecting element without wall mounting, U-shaped band, size 300](/web/image/product.template/202331/image_128/%5B116613%5D%20RIEGLER%20Connecting%20element%20without%20wall%20mounting%2C%20U-shaped%20band%2C%20size%20300?unique=0bf52ba)
|
Type number: UB 300 |
7.96 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

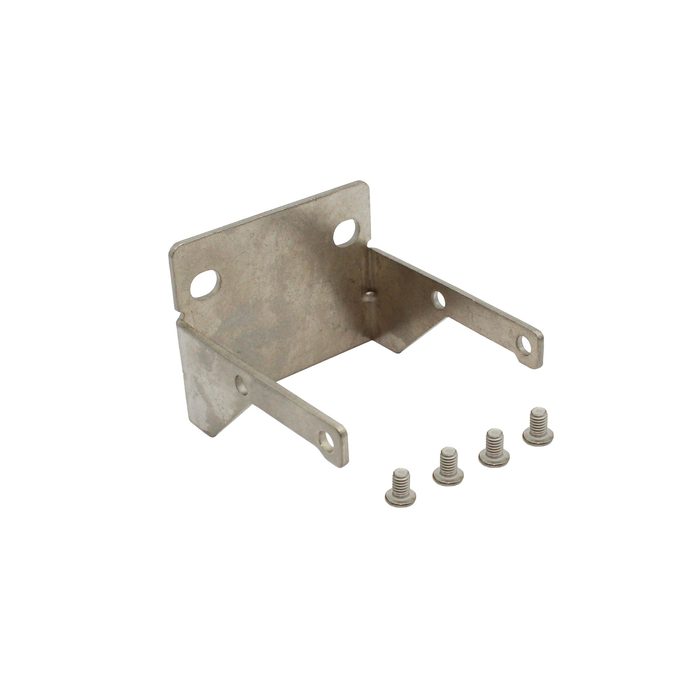

![[179148] RIEGLER Mounting bracket incl. 4 screws, «GA», size 300](/web/image/product.template/216418/image_128/%5B179148%5D%20RIEGLER%20Mounting%20bracket%20incl.%204%20screws%2C%20%C2%ABGA%C2%BB%2C%20size%20300?unique=682a87f)
|
