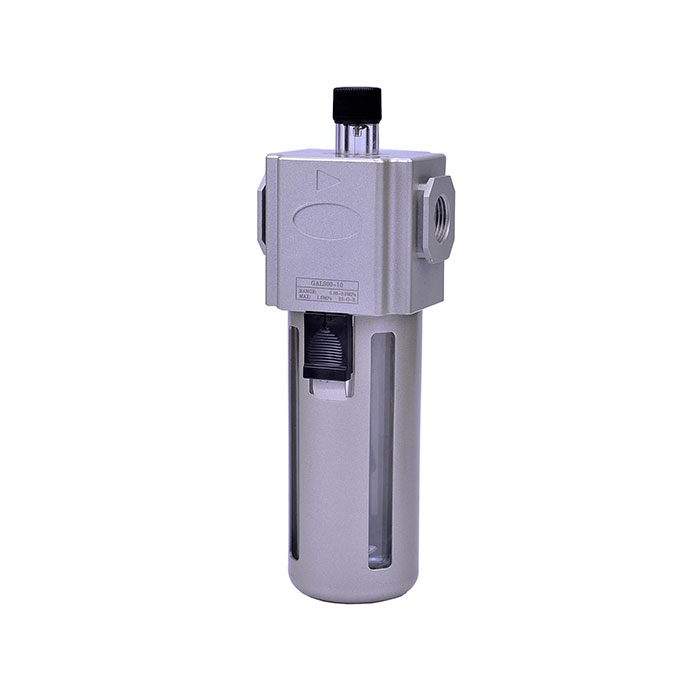

RIEGLER Mist oiler »GA«, PC container, Protective cage, Size 400, G 1/2
Typennummer: GAL 33
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Mist oiler »GA«, PC container, Protective cage, Mounting bracket, Size 400, G1/2, Input pres. max. 10 bar, Working pres. 0.5-9 bar
| Inlet pressure max. | 10 bar |
| Temperature range min. | -5 °C |
| Temperature range max. | 70 °C |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | GA |
| Container | Polycarbonate container with protective cage |
| Dropper attachment | Brass/POM |
| Working pressure min. | 0.5 bar |
| Working pressure max. | 9 bar |
| Thread | G 1/2 |
| Flow rate | 8800 l/min |
| BG | 400 |
| A | 80 mm |
| B | 204.5 mm |
| C | 49.5 mm |
| D | 155 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[178486] RIEGLER Mist oiler »GA«, PC container, Protective cage, Size 300, G 1/2](/web/image/product.template/216376/image_128/%5B178486%5D%20RIEGLER%20Mist%20oiler%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%20300%2C%20G%201-2?unique=42d8326)
|
Typennummer: GAL 13 |
27.42 € | |
![[178484] RIEGLER Mist oiler »GA«, PC container, Protective cage, Size 300, G 1/4](/web/image/product.template/216374/image_128/%5B178484%5D%20RIEGLER%20Mist%20oiler%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%20300%2C%20G%201-4?unique=9dc4002)
|
Typennummer: GAL 11 |
27.42 € | |
![[178485] RIEGLER Mist oiler »GA«, PC container, Protective cage, Size 300, G 3/8](/web/image/product.template/216375/image_128/%5B178485%5D%20RIEGLER%20Mist%20oiler%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%20300%2C%20G%203-8?unique=672cf77)
|
Typennummer: GAL 12 |
27.42 € | |
![[178487] RIEGLER Mist oiler »GA«, PC container, Protective cage, Size 400, G 3/8](/web/image/product.template/216377/image_128/%5B178487%5D%20RIEGLER%20Mist%20oiler%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%20Size%20400%2C%20G%203-8?unique=74aaed5)
|
Typennummer: GAL 32 |
42.44 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

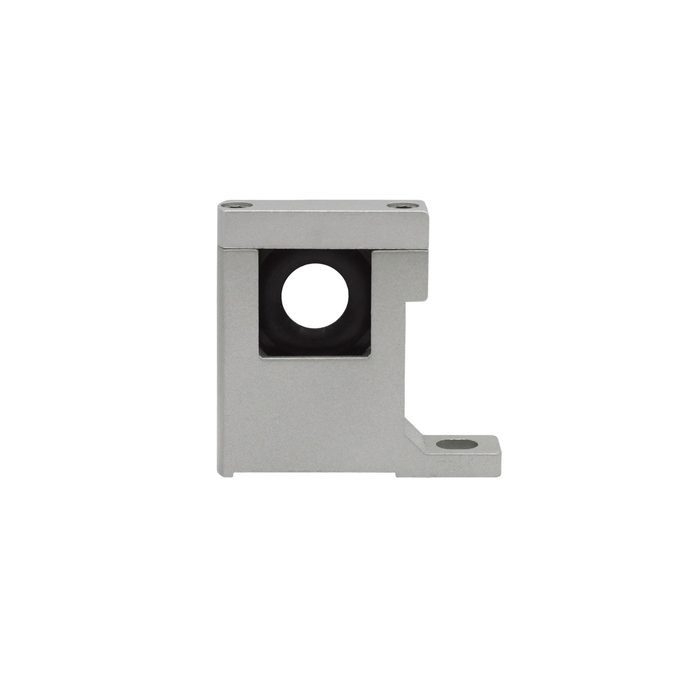

![[116517] RIEGLER Connecting element with wall mounting, 1 hole, L-shaped bracket](/web/image/product.template/201217/image_128/%5B116517%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%201%20hole%2C%20L-shaped%20bracket?unique=5441967)
|
Type number: LB 400 |
9.12 € | |

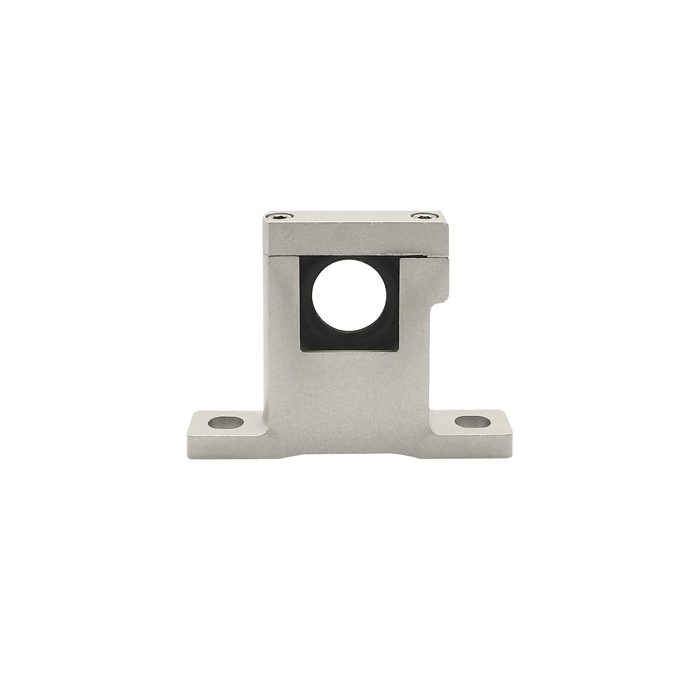

![[116610] RIEGLER Connecting element with wall mounting, 2 holes, T-shaped bracket](/web/image/product.template/202328/image_128/%5B116610%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%202%20holes%2C%20T-shaped%20bracket?unique=b518a62)
|
Type number: TB 400 |
9.12 € | |

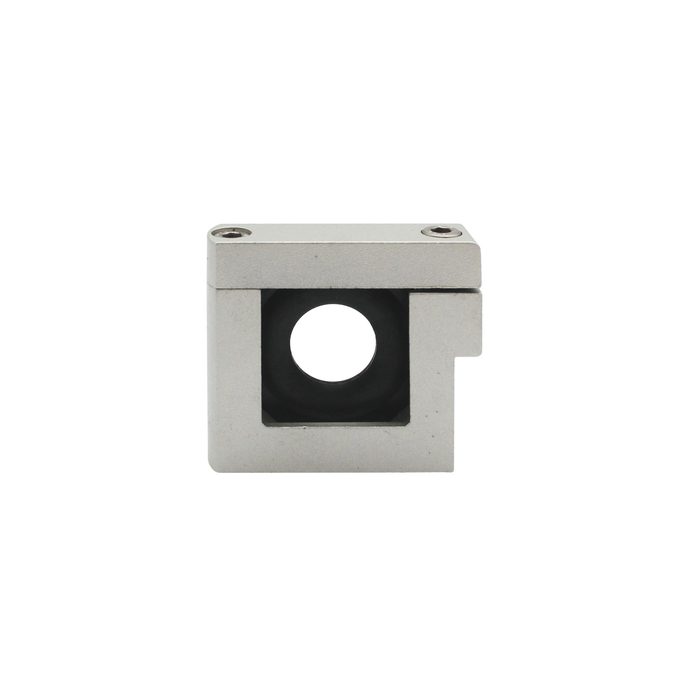

![[116614] RIEGLER Connecting element without wall mounting, U-shaped band, size 400](/web/image/product.template/202332/image_128/%5B116614%5D%20RIEGLER%20Connecting%20element%20without%20wall%20mounting%2C%20U-shaped%20band%2C%20size%20400?unique=3b9ba6a)
|
Type number: UB 400 |
10.82 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

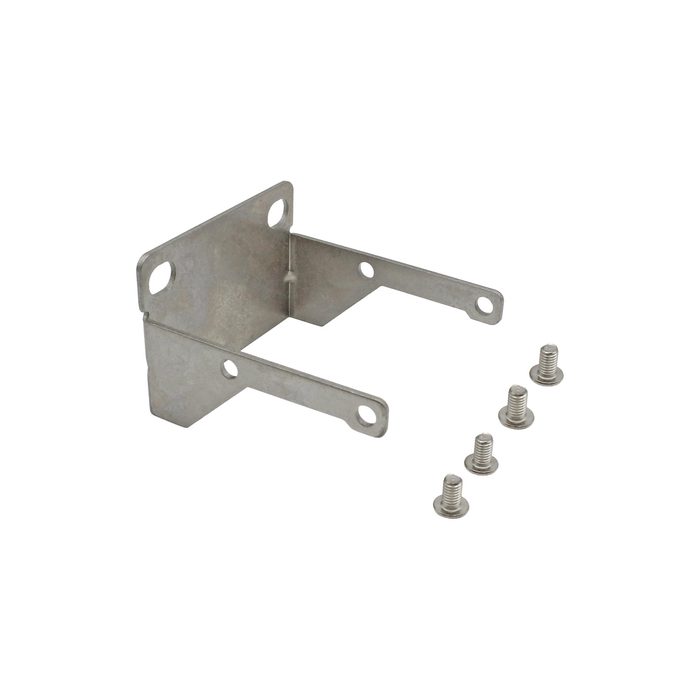

![[116485] RIEGLER Mounting bracket incl. 4 screws, for »G«/»GA«, size 400](/web/image/product.template/201212/image_128/%5B116485%5D%20RIEGLER%20Mounting%20bracket%20incl.%204%20screws%2C%20for%20%C2%BBG%C2%AB-%C2%BBGA%C2%AB%2C%20size%20400?unique=55725a1)
|
