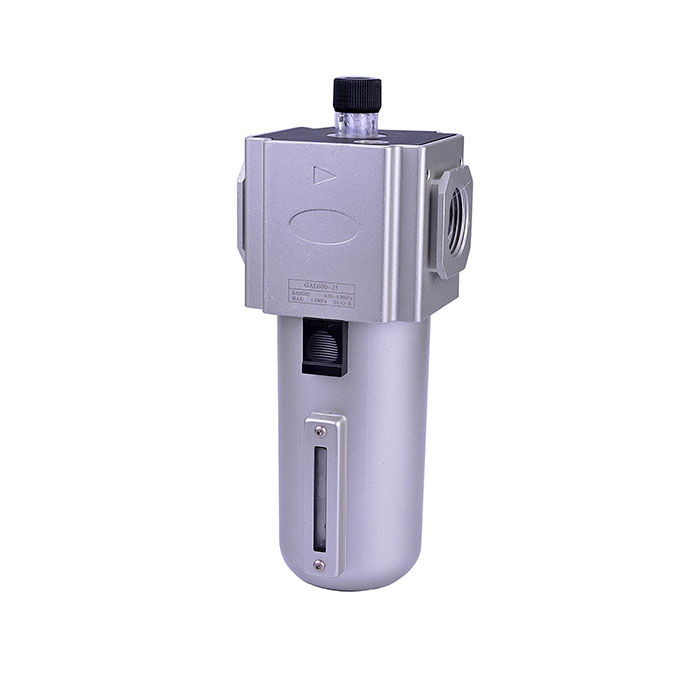

RIEGLER Mist oiler »GA«, Metal container, Viewing tube, Size 600, G 3/4
Typennummer: GAL 34
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mist lubricator "GA" made of die-cast aluminum, for compressed air treatment, max. 9 bar - Type GAL 34
The RIEGLER mist lubricator "GA", with metal container and sight tube, BG 600, G 3/4 doses precise quantities of oil into the compressed air flow and automatically lubricates pneumatic consumers. The housing is made of die-cast aluminum with NBR seals. The operating pressure range is 0.5 bar to 9 bar. The temperature range is between -5 °C and 70 °C. Connection thread G 3/4 - suitable for common industry standards. The flow rate is 14500 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Metal tank with sight tube. Automatic lubrication extends the service life of moving parts.
Field of application
Typical areas of application: Lubrication of pneumatic cylinders, valves and pneumatic tools.
| Inlet pressure max. | 10 bar |
| Temperature range min. | -5 °C |
| Temperature range max. | 70 °C |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | GA |
| Container | Metal container with sight tube |
| Dropper attachment | Brass/POM |
| Working pressure min. | 0.5 bar |
| Working pressure max. | 9 bar |
| Thread | G 3/4 |
| Flow rate | 14500 l/min |
| BG | 600 |
| A | 100 mm |
| B | 246 mm |
| C | 63.5 mm |
| D | 182.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[178490] RIEGLER Mist oiler »GA«, Metal container, Viewing tube, Size 600, G 1](/web/image/product.template/216380/image_128/%5B178490%5D%20RIEGLER%20Mist%20oiler%20%C2%BBGA%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%20Size%20600%2C%20G%201?unique=4d0dcd9)
|
Typennummer: GAL 55 |
73.08 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

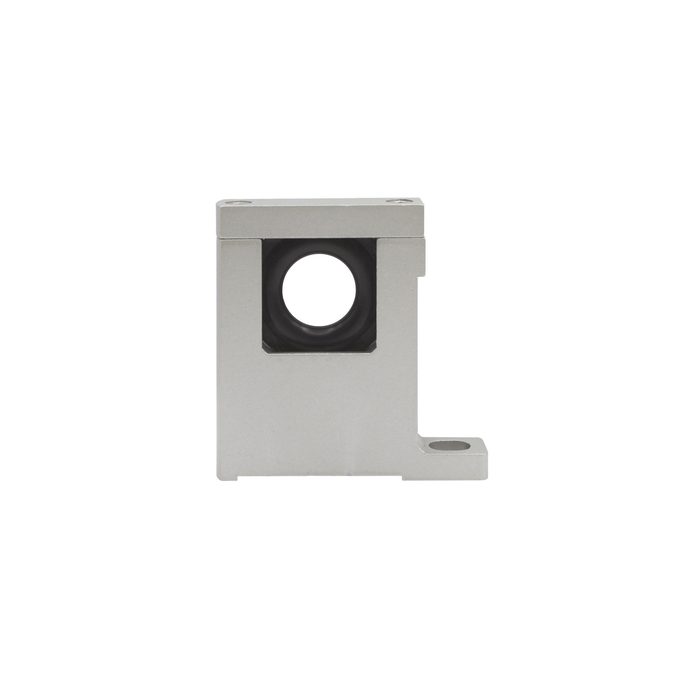

![[116518] RIEGLER Connecting element with wall mounting, 1 hole, L-shaped bracket](/web/image/product.template/201218/image_128/%5B116518%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%201%20hole%2C%20L-shaped%20bracket?unique=158565d)
|
Type number: LB 600 |
15.23 € | |

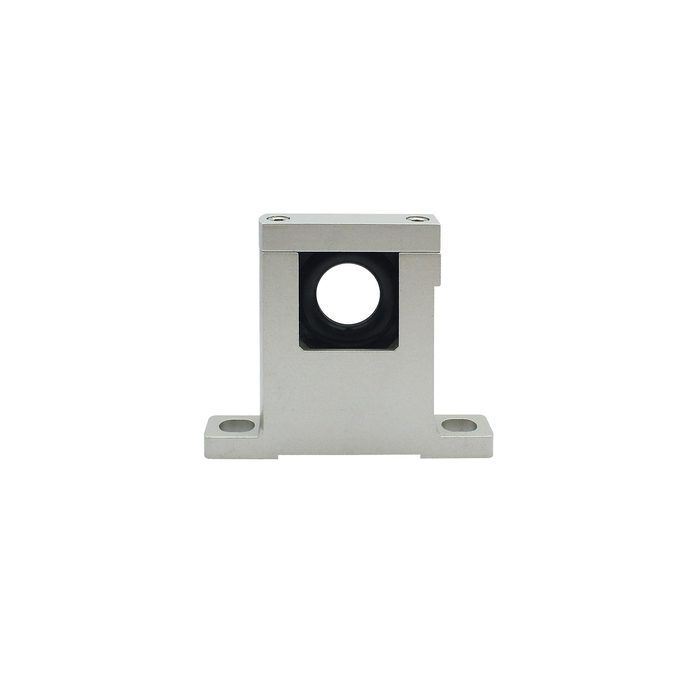

![[116611] RIEGLER Connecting element with wall mounting, 2 holes, T-shaped bracket](/web/image/product.template/202329/image_128/%5B116611%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%202%20holes%2C%20T-shaped%20bracket?unique=a38c762)
|
Type number: TB 600 |
15.23 € | |

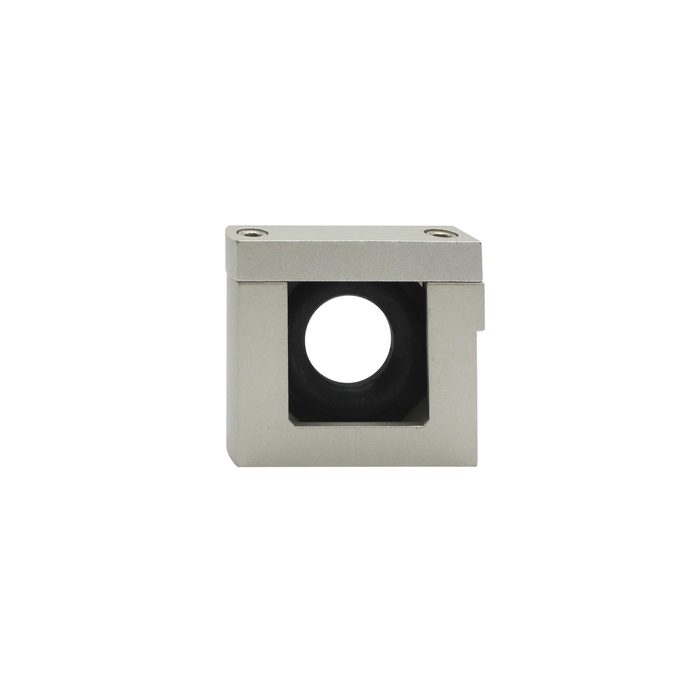

![[116615] RIEGLER Connecting element without wall mounting, U-shaped band, size 600](/web/image/product.template/202333/image_128/%5B116615%5D%20RIEGLER%20Connecting%20element%20without%20wall%20mounting%2C%20U-shaped%20band%2C%20size%20600?unique=29f8381)
|
