RIEGLER Service unit 3-part »GA«, PC container, 5 µm, Size 400, G 3/8
Typennummer: GAFRL 32
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3-piece "GA" maintenance unit made of die-cast aluminum, for compressed air preparation - type GAFRL 32
The RIEGLER maintenance unit, 3-piece "GA", PC-treated, BG 400, G3/8, 1.5-9 bar, HA combines compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of die-cast aluminum with NBR seals. The control range extends from 1.5 bar to 9 bar with a maximum inlet pressure of 10 bar. The temperature range is between -5 °C and 70 °C. Connection thread G 3/8 - suitable for common industry standards. The flow rate is 3500 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm, polycarbonate container with protective cage. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure max. | 10 bar |
| Temperature range min. | -5 °C |
| Temperature range max. | 70 °C |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | GA |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 5 µm |
| Dropper attachment | Brass/POM |
| Spring cover | POM |
| Thread | G 3/8 |
| Flow rate | 3500 l/min |
| Control range min. | 1.5 bar |
| Control range max. | 9 bar |
| Condensate drain | semi-automatic |
| BG | 400 |
| A | 248 mm |
| B | 227 mm |
| C | 49.5 mm |
| D | 177.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[178507] RIEGLER Service unit 3-part »GA«, PC container, 5 µm, Size 300, G 1/2](/web/image/product.template/216397/image_128/%5B178507%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%205%20%C2%B5m%2C%20Size%20300%2C%20G%201-2?unique=7c62c32)
|
Typennummer: GAFRL 13 |
79.58 € | |
![[178512] RIEGLER Service unit 3-part »GA«, PC container, 5 µm, Size 300, G 1/2](/web/image/product.template/216402/image_128/%5B178512%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%205%20%C2%B5m%2C%20Size%20300%2C%20G%201-2?unique=6d587de)
|
Typennummer: GAFRL 13 A |
112.11 € | |

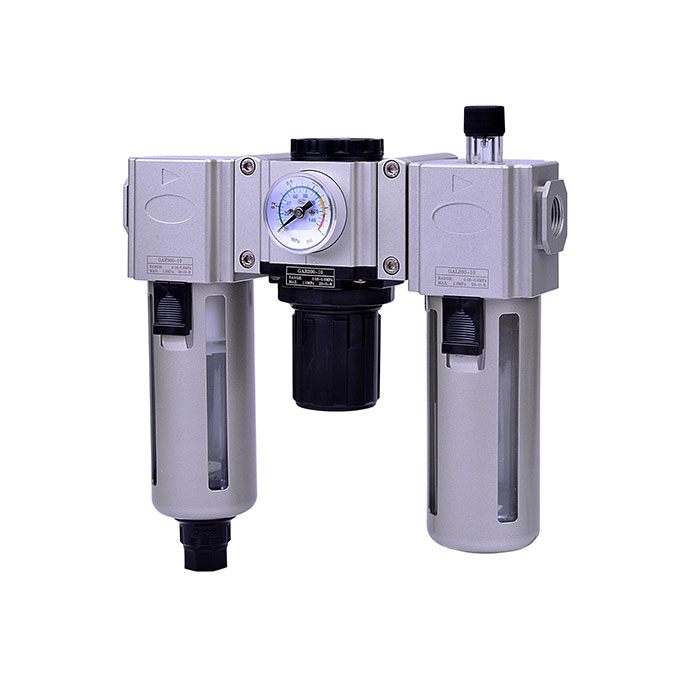

![[178505] RIEGLER Service unit 3-part »GA«, PC container, 5 µm, Size 300, G 1/4](/web/image/product.template/216395/image_128/%5B178505%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%205%20%C2%B5m%2C%20Size%20300%2C%20G%201-4?unique=ceae213)
|
Typennummer: GAFRL 11 |
79.58 € | |
![[178510] RIEGLER Service unit 3-part »GA«, PC container, 5 µm, Size 300, G 1/4](/web/image/product.template/216400/image_128/%5B178510%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%205%20%C2%B5m%2C%20Size%20300%2C%20G%201-4?unique=b61daab)
|
Typennummer: GAFRL 11 A |
112.11 € | |
![[178511] RIEGLER Service unit 3-part »GA«, PC container, 5 µm, Size 300, G 3/8](/web/image/product.template/216401/image_128/%5B178511%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%205%20%C2%B5m%2C%20Size%20300%2C%20G%203-8?unique=c748435)
|
Typennummer: GAFRL 12 A |
112.11 € | |
![[178506] RIEGLER Service unit 3-part »GA«, PC container, 5 µm, Size 300, G 3/8](/web/image/product.template/216396/image_128/%5B178506%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%205%20%C2%B5m%2C%20Size%20300%2C%20G%203-8?unique=b71a04b)
|
Typennummer: GAFRL 12 |
79.58 € | |
![[178514] RIEGLER Service unit 3-part »GA«, PC container, 5 µm, Size 400, G 1/2](/web/image/product.template/216404/image_128/%5B178514%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%205%20%C2%B5m%2C%20Size%20400%2C%20G%201-2?unique=33b2a32)
|
Typennummer: GAFRL 33 A |
149.26 € | |
![[178509] RIEGLER Service unit 3-part »GA«, PC container, 5 µm, Size 400, G 1/2](/web/image/product.template/216399/image_128/%5B178509%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%205%20%C2%B5m%2C%20Size%20400%2C%20G%201-2?unique=69c5d81)
|
Typennummer: GAFRL 33 |
118.80 € | |
![[178513] RIEGLER Service unit 3-part »GA«, PC container, 5 µm, Size 400, G 3/8](/web/image/product.template/216403/image_128/%5B178513%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%205%20%C2%B5m%2C%20Size%20400%2C%20G%203-8?unique=8a1d053)
|
Typennummer: GAFRL 32 A |
149.26 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101677] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 10 bar/145 psi](/web/image/product.template/169649/image_128/%5B101677%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar-145%20psi?unique=883ce24)
|
Type number: 206-KD |
6.25 € | |
![[116517] RIEGLER Connecting element with wall mounting, 1 hole, L-shaped bracket](/web/image/product.template/201217/image_128/%5B116517%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%201%20hole%2C%20L-shaped%20bracket?unique=088c29d)
|
Type number: LB 400 |
9.06 € | |
![[116610] RIEGLER Connecting element with wall mounting, 2 holes, T-shaped bracket](/web/image/product.template/202328/image_128/%5B116610%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%202%20holes%2C%20T-shaped%20bracket?unique=4aea2b7)
|
Type number: TB 400 |
9.06 € | |
![[116614] RIEGLER Connecting element without wall mounting, U-shaped band, size 400](/web/image/product.template/202332/image_128/%5B116614%5D%20RIEGLER%20Connecting%20element%20without%20wall%20mounting%2C%20U-shaped%20band%2C%20size%20400?unique=0e72af7)
|
Type number: UB 400 |
10.76 € | |

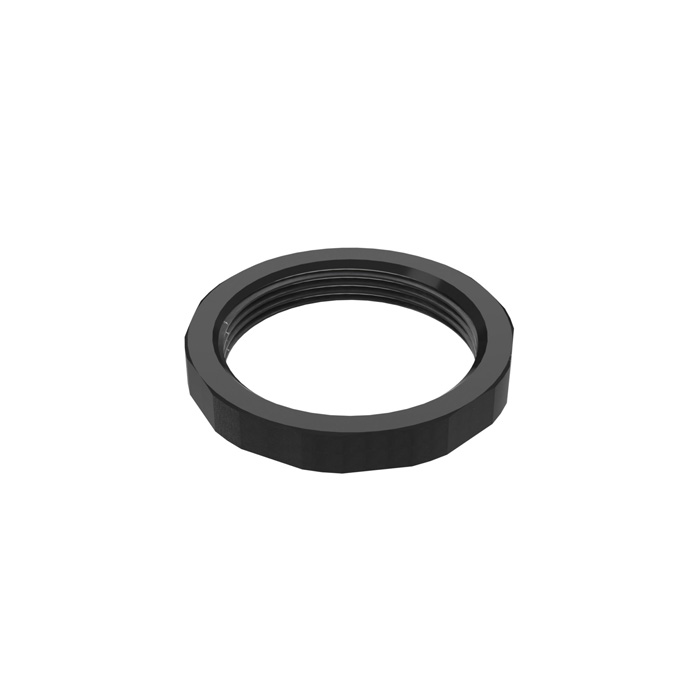

![[129876] RIEGLER Fastening nut 55x2.0, POM, for maintenance unit "GA", BG 400](/web/image/product.template/273090/image_128/%5B129876%5D%20RIEGLER%20Fastening%20nut%2055x2.0%2C%20POM%2C%20for%20maintenance%20unit%20%22GA%22%2C%20BG%20400?unique=576748f)
|
