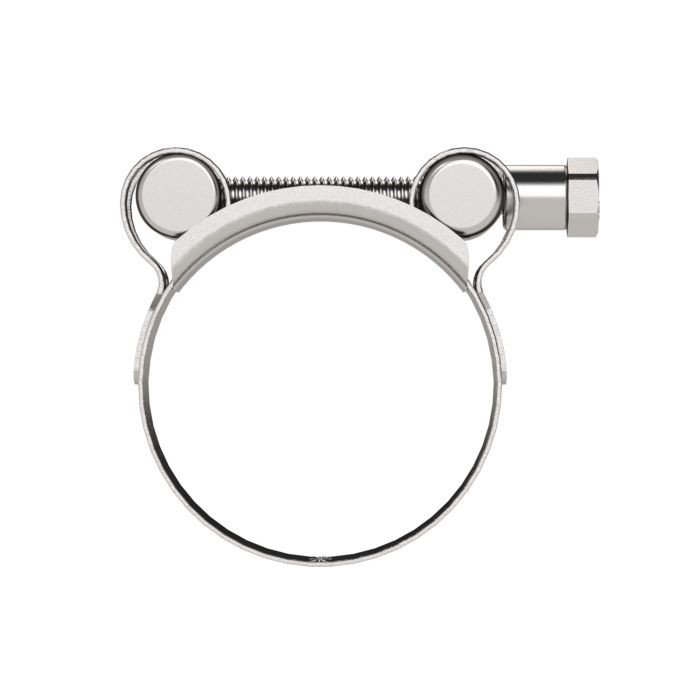

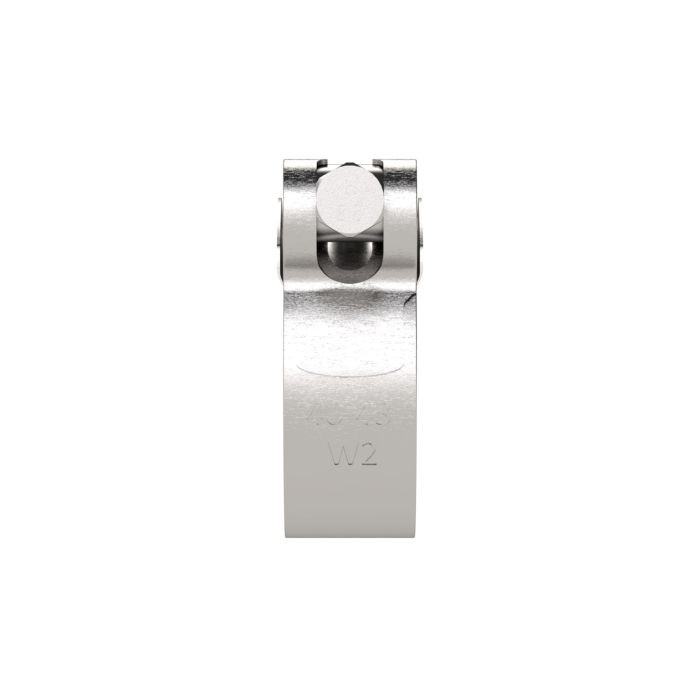

RIEGLER Hinge pin clamp, stainless steel 1.4301 (W4), 29 - 31 mm, 20 mm
Typennummer: GBS31ES
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Hinge pin clamp, stainless steel 1.4301 (W4), clamping range 29 - 31 mm, band width 20 mm, rec. Tightening torque 9.0 Nm
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Exception | no exception |
| Bandwidth | 20 mm |
| Bolt | Stainless steel 1.4301 (W4) |
| CAS No. SVHC 1 | none CAS No. |
| recomm. Tightening torque | 9 Nm |
| Housing | Stainless steel 1.4301 (W4) |
| REACH Info | no SVHC substance contained |
| REACH SVHC1 Substance Name | no |
| RoHS Article of the Directive | no entry |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Screw | Stainless steel 1.4301 (W4) |
| Clamping range max. | 31 mm |
| Clamping range min. | 29 mm |
| Steel strap | Stainless steel 1.4301 (W4) |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[194326] RIEGLER Hinge bolt clamp, stainless steel 1.4301 (W4), 80 - 85 mm, 24 mm](/web/image/product.template/267726/image_128/%5B194326%5D%20RIEGLER%20Hinge%20bolt%20clamp%2C%20stainless%20steel%201.4301%20%28W4%29%2C%2080%20-%2085%20mm%2C%2024%20mm?unique=edecfca)
|
Typennummer: GBS85ES |
8.91 € | |
![[194343] RIEGLER Hinge pin clamp, stainless steel 1.4301 (W4), 104 - 112 mm, 24 mm](/web/image/product.template/267744/image_128/%5B194343%5D%20RIEGLER%20Hinge%20pin%20clamp%2C%20stainless%20steel%201.4301%20%28W4%29%2C%20104%20-%20112%20mm%2C%2024%20mm?unique=f5da91d)
|
Typennummer: GBS112ES |
9.79 € | |
![[194344] RIEGLER Hinge pin clamp, stainless steel 1.4301 (W4), 113 - 121 mm, 24 mm](/web/image/product.template/267745/image_128/%5B194344%5D%20RIEGLER%20Hinge%20pin%20clamp%2C%20stainless%20steel%201.4301%20%28W4%29%2C%20113%20-%20121%20mm%2C%2024%20mm?unique=d96a3ae)
|
Typennummer: GBS121ES |
9.97 € | |
![[194310] RIEGLER Hinge pin clamp, stainless steel 1.4301 (W4), 17 - 19 mm, 18 mm](/web/image/product.template/268006/image_128/%5B194310%5D%20RIEGLER%20Hinge%20pin%20clamp%2C%20stainless%20steel%201.4301%20%28W4%29%2C%2017%20-%2019%20mm%2C%2018%20mm?unique=f8e3a99)
|
Typennummer: GBS19ES |
3.43 € | |
![[194311] RIEGLER Hinge pin clamp, stainless steel 1.4301 (W4), 20 - 22 mm, 18 mm](/web/image/product.template/268007/image_128/%5B194311%5D%20RIEGLER%20Hinge%20pin%20clamp%2C%20stainless%20steel%201.4301%20%28W4%29%2C%2020%20-%2022%20mm%2C%2018%20mm?unique=bfdbe19)
|
Typennummer: GBS22ES |
3.45 € | |
![[194312] RIEGLER Hinge pin clamp, stainless steel 1.4301 (W4), 23 - 25 mm, 18 mm](/web/image/product.template/268008/image_128/%5B194312%5D%20RIEGLER%20Hinge%20pin%20clamp%2C%20stainless%20steel%201.4301%20%28W4%29%2C%2023%20-%2025%20mm%2C%2018%20mm?unique=8fca9bf)
|
Typennummer: GBS25ES |
3.50 € | |
![[194313] RIEGLER Hinge pin clamp, stainless steel 1.4301 (W4), 26 - 28 mm, 18 mm](/web/image/product.template/268012/image_128/%5B194313%5D%20RIEGLER%20Hinge%20pin%20clamp%2C%20stainless%20steel%201.4301%20%28W4%29%2C%2026%20-%2028%20mm%2C%2018%20mm?unique=c998464)
|
Typennummer: GBS28ES |
3.63 € | |
![[194315] RIEGLER Hinge pin clamp, stainless steel 1.4301 (W4), 32 - 35 mm, 20 mm](/web/image/product.template/268018/image_128/%5B194315%5D%20RIEGLER%20Hinge%20pin%20clamp%2C%20stainless%20steel%201.4301%20%28W4%29%2C%2032%20-%2035%20mm%2C%2020%20mm?unique=7eb273f)
|
Typennummer: GBS35ES |
3.78 € | |
![[194316] RIEGLER Hinge pin clamp, stainless steel 1.4301 (W4), 36 - 39 mm, 20 mm](/web/image/product.template/268019/image_128/%5B194316%5D%20RIEGLER%20Hinge%20pin%20clamp%2C%20stainless%20steel%201.4301%20%28W4%29%2C%2036%20-%2039%20mm%2C%2020%20mm?unique=4965d54)
|
Typennummer: GBS39ES |
3.84 € | |
![[194317] RIEGLER Hinge pin clamp, stainless steel 1.4301 (W4), 40 - 43 mm, 20 mm](/web/image/product.template/268023/image_128/%5B194317%5D%20RIEGLER%20Hinge%20pin%20clamp%2C%20stainless%20steel%201.4301%20%28W4%29%2C%2040%20-%2043%20mm%2C%2020%20mm?unique=c310b8b)
|
Typennummer: GBS43ES |
3.93 € | |
![[194318] RIEGLER Hinge pin clamp, stainless steel 1.4301 (W4), 44 - 47 mm, 22 mm](/web/image/product.template/268081/image_128/%5B194318%5D%20RIEGLER%20Hinge%20pin%20clamp%2C%20stainless%20steel%201.4301%20%28W4%29%2C%2044%20-%2047%20mm%2C%2022%20mm?unique=6227d34)
|
Typennummer: GBS47ES |
5.28 € | |
![[194319] RIEGLER Hinge pin clamp, Stainless steel 1.4301 (W4), 48 - 51 mm, 22 mm](/web/image/product.template/216643/image_128/%5B194319%5D%20RIEGLER%20Hinge%20pin%20clamp%2C%20Stainless%20steel%201.4301%20%28W4%29%2C%2048%20-%2051%20mm%2C%2022%20mm?unique=20bf196)
|
Typennummer: GBS51ES |
5.36 € | |
![[194320] RIEGLER Hinge pin clamp, Stainless steel 1.4301 (W4), 52 - 55 mm, 22 mm](/web/image/product.template/216644/image_128/%5B194320%5D%20RIEGLER%20Hinge%20pin%20clamp%2C%20Stainless%20steel%201.4301%20%28W4%29%2C%2052%20-%2055%20mm%2C%2022%20mm?unique=cc064cc)
|
Typennummer: GBS55ES |
5.40 € | |
![[194321] RIEGLER Hinge pin clamp, stainless steel 1.4301 (W4), 56 - 59 mm, 22 mm](/web/image/product.template/268093/image_128/%5B194321%5D%20RIEGLER%20Hinge%20pin%20clamp%2C%20stainless%20steel%201.4301%20%28W4%29%2C%2056%20-%2059%20mm%2C%2022%20mm?unique=4087ab8)
|
Typennummer: GBS59ES |
5.69 € | |
![[194322] RIEGLER Hinge pin clamp, Stainless steel 1.4301 (W4), 60 - 63 mm, 22 mm](/web/image/product.template/216645/image_128/%5B194322%5D%20RIEGLER%20Hinge%20pin%20clamp%2C%20Stainless%20steel%201.4301%20%28W4%29%2C%2060%20-%2063%20mm%2C%2022%20mm?unique=628bd82)
|
Typennummer: GBS63ES |
5.76 € | |
![[194323] RIEGLER Hinge pin clamp, stainless steel 1.4301 (W4), 64 - 67 mm, 22 mm](/web/image/product.template/268094/image_128/%5B194323%5D%20RIEGLER%20Hinge%20pin%20clamp%2C%20stainless%20steel%201.4301%20%28W4%29%2C%2064%20-%2067%20mm%2C%2022%20mm?unique=7e8da14)
|
Typennummer: GBS67ES |
5.85 € | |
![[194324] RIEGLER Hinge pin clamp, Stainless steel 1.4301 (W4), 68 - 73 mm, 24 mm](/web/image/product.template/216646/image_128/%5B194324%5D%20RIEGLER%20Hinge%20pin%20clamp%2C%20Stainless%20steel%201.4301%20%28W4%29%2C%2068%20-%2073%20mm%2C%2024%20mm?unique=d9289d0)
|
Typennummer: GBS73ES |
8.63 € | |
![[194325] RIEGLER Hinge pin clamp, stainless steel 1.4301 (W4), 74 - 79 mm, 24 mm](/web/image/product.template/267711/image_128/%5B194325%5D%20RIEGLER%20Hinge%20pin%20clamp%2C%20stainless%20steel%201.4301%20%28W4%29%2C%2074%20-%2079%20mm%2C%2024%20mm?unique=ca1363e)
|
Typennummer: GBS79ES |
8.73 € | |
![[194327] RIEGLER Hinge pin clamp, stainless steel 1.4301 (W4), 86 - 91 mm, 24 mm](/web/image/product.template/267731/image_128/%5B194327%5D%20RIEGLER%20Hinge%20pin%20clamp%2C%20stainless%20steel%201.4301%20%28W4%29%2C%2086%20-%2091%20mm%2C%2024%20mm?unique=028ff0e)
|
Typennummer: GBS91ES |
9.20 € | |
![[194328] RIEGLER Hinge pin clamp, Stainless steel 1.4301 (W4), 92 - 97 mm, 24 mm](/web/image/product.template/216647/image_128/%5B194328%5D%20RIEGLER%20Hinge%20pin%20clamp%2C%20Stainless%20steel%201.4301%20%28W4%29%2C%2092%20-%2097%20mm%2C%20%2024%20mm?unique=bc06c7b)
|
Typennummer: GBS97ES |
9.20 € | |
![[194329] RIEGLER Hinge pin clamp, stainless steel 1.4301 (W4), 98 - 103 mm, 24 mm](/web/image/product.template/267733/image_128/%5B194329%5D%20RIEGLER%20Hinge%20pin%20clamp%2C%20stainless%20steel%201.4301%20%28W4%29%2C%2098%20-%20103%20mm%2C%2024%20mm?unique=4682fb3)
|
Typennummer: GBS103ES |
9.39 € | |
