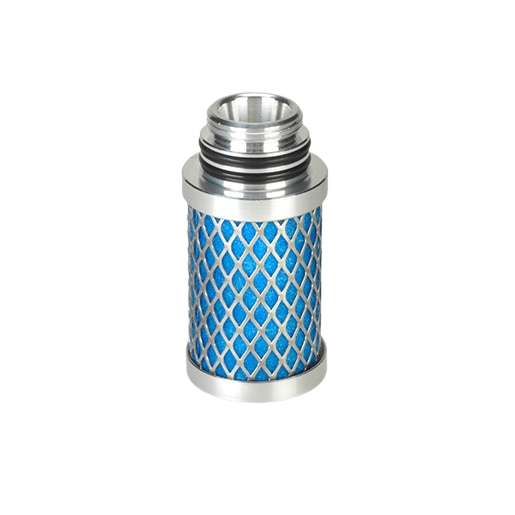

Donaldson filter element, CF 02/05
Nominal flow rate at 7 bar: 20 m³/h
Donaldson has been developing innovative solutions for complex filtration requirements for over 100 years. As one of the world's leading suppliers, the company offers state-of-the-art filtration technologies as well as high-quality filters and spare parts for a wide range of industries
Highly efficient depth filtration for maximum dirt holding capacity
The Donaldson Filter element CF 02/05 is a high-performance depth filter for the reliable separation of oil and water aerosols as well as solid particles from compressed air and gases. Thanks to the innovative, wound depth filter medium, this element achieves maximum separation performance with minimum differential pressure. It is the ideal solution for industrial applications where economy and high compressed air purity are paramount.
Performance data & filtration properties
- Filtration type: Coalescence and particle filters for demanding industrial use.
- Nominal flow rate: 180 m³/h (at 7 bar g operating pressure).
- Energy efficiency: Flow-optimized design for minimal pressure loss and reduced energy costs.
- Validated quality: Performance data in accordance with ISO 12500 ensures that the compressed air quality classes in accordance with ISO 8573-1 are reliably achieved.
- High capacity: The coiled medium offers a large cavity volume for maximum dirt pick-up and long service life.
High-quality structure of the element
- Stable construction: Inner and outer support shells made of stainless steel effectively protect the filter medium against pressure surges.
- Optimal drainage: The fixed coalescence shell ensures a permanently stable structure and excellent drainage of the separated liquids.
- Corrosion protection: Thanks to the use of high-quality materials, the element is resistant to aggressive condensates.
- Integrated seal: High-quality seals ensure a leak-free fit in the filter housing.
System compatibility
- Suitable for: Specially designed for use in Donaldson filter housings of the AG, SG and HD series (size 05/20).
Typical areas of application
- Industrial compressed air cleaning: In the chemical and pharmaceutical industries and in mechanical engineering.
- Surface finishing: Protection of painting and coating processes.
- System construction: Reliable treatment of instrument and process air.
- Energy supply: Protection of sensitive control components in power plants.
| Filter type | CF: Coalescence depth filter |
| Nominal flow rate at 7 bar (m³/h) | 20 |
| Element type | AG, SG und HD Element |
