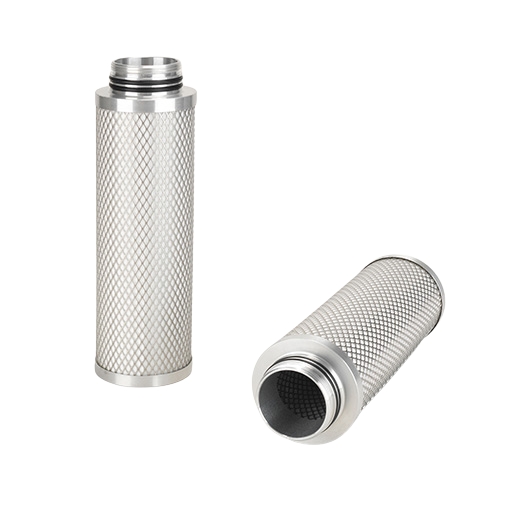

Donaldson filter element, AK 02/05
Nominal flow rate at 7 bar: 20 m³/h
Donaldson has been developing innovative solutions for complex filtration requirements for over 100 years. As one of the world's leading suppliers, the company offers state-of-the-art filtration technologies as well as high-quality filters and spare parts for a wide range of industries
Active carbon adsorption filter - residual oil content below 0.003 mg/m³ for oil-free compressed air
The Donaldson Filter element AK 02/05 is a high-performance activated carbon filter and adsorption filter for industrial compressed air treatment in AG/SG/HD housings. This Donaldson filter element combines grain activated carbon on a nonwoven carrier with an integrated particle filter stage made of borosilicate glass fibers. The residual oil content is reduced to below 0.003 mg/m³ - validated in accordance with ISO 12500-2. The economical solution for oil-free compressed air in accordance with ISO 8573-1.
Performance data & filtration properties
- Filtration type: Adsorption filter with grain activated carbon and integrated particle filter stage - activated carbon filter for compressed air.
- Nominal flow rate: 20 m³/h at 7 bar operating pressure - suitable for AG/SG/HD compressed air filter housings.
- Remaining oil content: <0.003 mg/m³ according to ISO 12500-2 - for oil-free and odorless compressed air.
- Lifetime: Up to 2,000 operating hours - economical compressed air treatment.
- Particle separation: Integrated borosilicate glass fiber filter stage for additional particle retention.
- Validated quality: Tested according to ISO 12500-2 - reliable compressed air quality according to ISO 8573-1.
High-quality structure of the element
- Grain activated carbon: High-quality activated carbon adsorption medium on carrier fleece - efficient adsorption of oil vapors and odors.
- Particle filter stage: Borosilicate glass fiber fleece for separating activated carbon abrasion and ultra-fine particles.
- End caps: Aluminum - robust and corrosion-resistant.
- Sealing: Perbunan O-rings (NBR) for a reliable fit in the filter housing.
System compatibility
- Fits for: This Donaldson filter element is designed as a replacement filter for Donaldson compressed air filter housings of the AG/SG/HD series (size 02/05). Precisely fitting filter cartridge for easy replacement.
Typical areas of application
- Oil-free compressed air: Activated carbon filter for removing oil vapor and odours - for compressed air quality ISO 8573-1 class 1.
- Food and beverage industry: Adsorption filter for contamination-free compressed air treatment.
- Pharmaceutical and medical technology: Oil-free, odorless compressed air for sensitive production processes.
- Electronics production: Activated carbon filters for the highest purity requirements.
- Painting and coating technology: Adsorption filter for contamination-free compressed air.
| Filter type | AK: Activated carbon adsorption |
| Nominal flow rate at 7 bar (m³/h) | 20 |
| Element type | AG, SG und HD Element |
| Connection type | UF threaded end |
