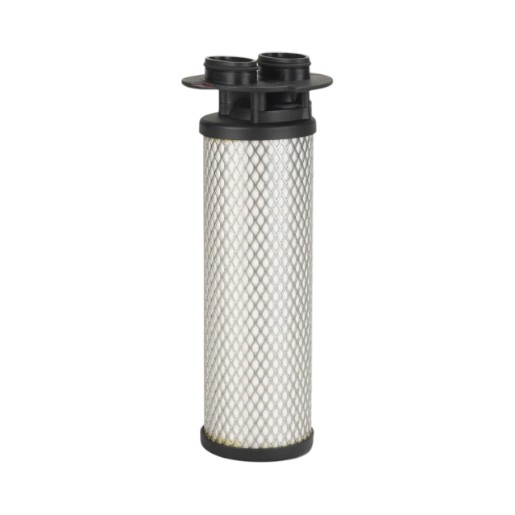

Donaldson filter element, A0035 silicone-free
Nominal flow rate at 7 bar: 35 m³/h
Donaldson has been developing innovative solutions for complex filtration requirements for over 100 years. As one of the world's leading suppliers, the company offers state-of-the-art filtration technologies as well as high-quality filters and spare parts for a wide range of industries
Active carbon adsorption filter - residual oil content below 0.003 mg/m³ for the purest compressed air
The Donaldson Filter element A0035 silicone-free is a high-performance activated carbon filter and adsorption filter for industrial compressed air treatment. This Donaldson filter element combines a grain activated carbon adsorption stage on a nonwoven backing with an integrated particle filter stage made of borosilicate glass fibers. The residual oil content is reduced to below 0.003 mg/m³ - validated in accordance with ISO 12500-2. The ideal solution for oil-free and odorless compressed air in accordance with ISO 8573-1.
Performance data & filtration properties
- Filtration type: Adsorption filter with grain activated carbon and integrated particle filter stage - effective activated carbon filter for compressed air.
- Nominal flow rate: 35 m³/h at 7 bar operating pressure - suitable for DF compressed air filter housings.
- Remaining oil content: <0.003 mg/m³ according to ISO 12500-2 - for oil-free and odorless compressed air.
- Lifetime: Up to 2,000 operating hours - economical compressed air treatment with long replacement intervals.
- Particle separation: Integrated borosilicate glass fiber filter stage for additional particle retention.
- Validated quality: Tested according to ISO 12500-2 - reliable compressed air quality according to ISO 8573-1.
High-quality structure of the element
- Grain activated carbon: High-quality activated carbon adsorption medium on carrier fleece - efficient adsorption of oil vapors and odors.
- Particle filter stage: Borosilicate glass fiber fleece for separating activated carbon abrasion and ultra-fine particles.
- End caps: GRP polyamide - lightweight, corrosion-resistant and chemically resistant.
- Sealing: Viton O-rings (FKM) - silicone-free and temperature-resistant for a reliable fit.
- Design: Compact design for easy filter replacement in the DF housing.
System compatibility
- Suitable for: This Donaldson filter element is designed as a replacement filter for Donaldson compressed air filter housings from the DF series (size 0035). Custom-fit filter cartridge for easy replacement in your compressed air system.
Typical areas of application
- Oil-free compressed air: Activated carbon filter for removing oil vapor and odours - for compressed air quality ISO 8573-1 class 1.
- Food and beverage industry: Adsorption filter for non-contact and contact use in compressed air treatment.
- Pharmaceutical and medical technology: Oil-free, odorless compressed air for sensitive production processes.
- Electronics production: Activated carbon filters for the highest purity requirements in semiconductor and PCB production.
- Painting and coating technology: Adsorption filter for contamination-free compressed air in painting systems.
| Filter type | A: Activated carbon |
| Nominal flow rate at 7 bar (m³/h) | 35 |
| Element type | DF |
| Connection type | DF connection |
