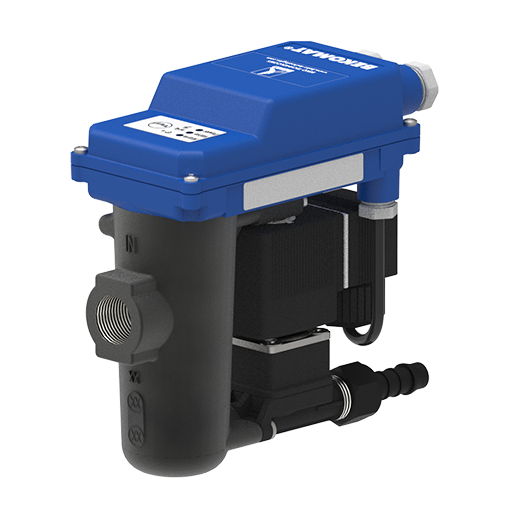

BEKO Condensate drain BEKOMAT 12 CO, 230Vac
For over thirty years, BEKO TECHNOLOGIES has been synonymous with powerful compressed air and compressed gas technology, tested worldwide. We represent quality "made in Germany" and values that are lived by BEKO TECHNOLOGIES
BEKO BEKOMAT 12 CO condensate drain 2000019
The BEKOMAT® condensate drains work with a capacitive sensor. The electronic level control of the BEKOMAT® guarantees that the condensate is drained without any loss of compressed air and minimizes energy consumption. For this reason, the BEKOMAT® often pays for itself within six months compared to devices with time-controlled drain valves. This not only saves energy and therefore costs, but also CO2 emissions.
The BEKOMAT advantages at a glance
- No unnecessary loss of compressed air
- Discharge according to volume
- Sensor detects every type of condensate
- Insensitive to dirt
- Low maintenance
- Fully automatic monitoring
Additional information:
- Item no.: KA12C10A0 has been replaced by item no.: 2000019
- Identical in construction with Elmag, Aircraft, Schneider Airsystems
| Max. Compressor capacity (m³/min) | 6,5 |
| Max. Refrigeration dryer capacity (m³/min) | 13 |
| Max. Filter capacity (m³/min) | 65 |
| Min. / max. operating pressure (bar) | 0,8 ... 16 |
| Housing (material) | Aluminum, hard-coated |
| Ambient temperature (°C) | +1 ... +60 |
| Weight (kg) | 0,8 |
| Condensate feed | 1 x G½ (internal) [optional: NPT thread] |
| Condensate drain | 1 x G⅜ (outer); hose nozzle, hose Ø = 10-13 mm (inner) |
| Operating voltage | 230 / 200 / 115 / 100 / 24 VAC ± 10%, 50 ... 60 Hz / 24 VDC ± 10% |
| Power consumption (VA (W)) | < 8,0 |
| Protection class (IP) | 65 |
| Condensate | oily condensate; oil-free condensate |
| Wire cross-section (mains connection) (mm) | recommended 3 x 0.75 ... 1.5 (AWG 16 ... 18) |
| Protection | recommended AC: 1 A slow / prescribed DC: 1 A slow |
| Contact load | max. AC 250 V, DC 30 V / 1A; min. DC 5V / 10 mA |
