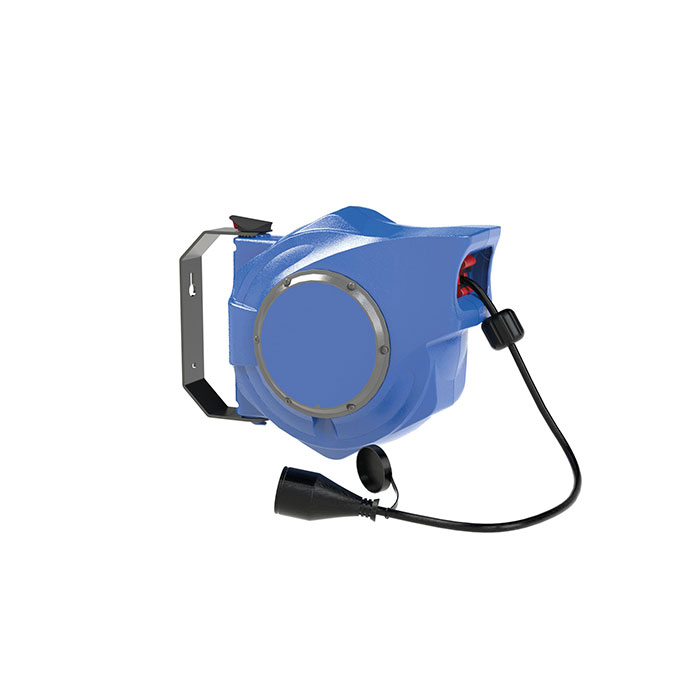

RIEGLER Electric cable reel, 3x1.5 mm², max. 240 V, max. 10 amps, 10m
Typennummer: EKR240V10M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Electric cable reel for compressed air distribution, SchuKo plug - type EKR240V10M
The RIEGLER electric cable reel, 3x1.5 mm², max. 240 V, max.10 Ampère, 10 m rolls up the compressed air hose automatically - for tidiness at the workplace. Connection thread SchuKo plug - suitable for common industry standards. Operating voltage max. 240 V, power consumption max. 1600 watts (rolled up), max. 2400 watts (unrolled). Automatic retraction for tidiness and quick readiness for use.
Field of application
Typical areas of application: Workshop, production and automotive operations.
| A | 406 mm |
| Connection | SchuKo plug |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.04 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Exception | 6c |
| B | 313 mm |
| Operating voltage | max. 240 V |
| CAS No. SVHC 1 | 7439-92-1 |
| Entrance | Rubber H07RN-F 3 x 1.5mm² |
| Cable length | 10 m |
| Cable type | PVC 3 x 1.5 mm² |
| Class name | FLEX |
| Power consumption | max. 1600 watts (rolled up), max. 2400 watts (unrolled) |
| Material identification | CW614N |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Swivelling | 180 ° |
| Current max. | 10 ampere |
| Theme shop | SAFETY |
