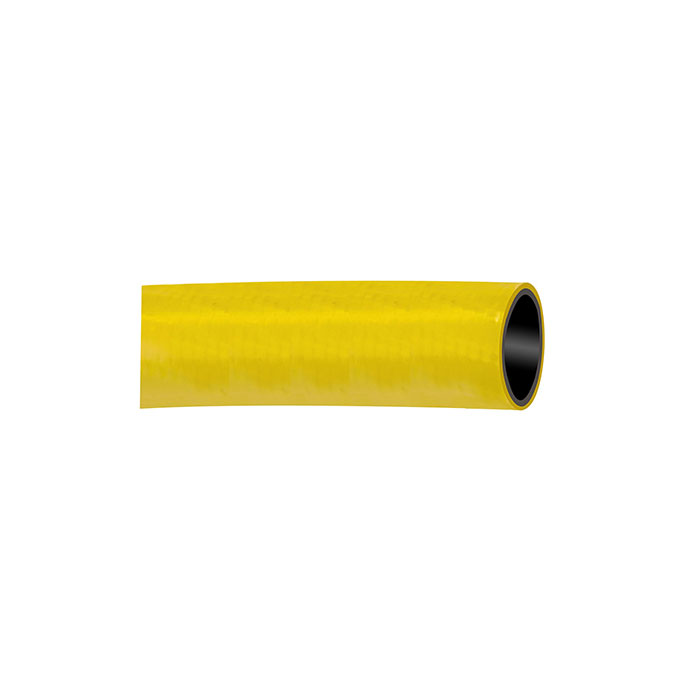

RIEGLER Water hose, soft PVC, hose ø 23,8x19, roll of 50 m
Typennummer: WS24X19-50
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Water hose for compressed air distribution - type WS24X19-50
The RIEGLER water hose, soft PVC, hose ø 23.8x19, roll of 50 m conducts compressed air flexibly and reliably from the compressor to the consumer. The temperature range is between -15 °C and 60 °C. Hose Ø 19 mm (inside) / 23.8 mm (outside). Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Share of SVHC SCIP | no SVHC substance |
| Area of application | Agricultural industry, construction industry, gardening and landscaping, agriculture |
| Exception | no exception |
| Outer ceiling | Soft PVC, yellow |
| Bursting pressure | 16 bar |
| Bending radius min. | 200 mm |
| CAS No. SVHC 1 | none CAS No. |
| Colour | yellow |
| Class name | FLEX |
| Max. operating pressure at 23 °C | 6 bar |
| REACH Info | no SVHC substance contained |
| REACH SVHC1 Substance Name | no |
| RoHS material information | RoHS compliant |
| Roll length | 50 m |
| Outer hose Ø | 23.8 mm |
| Hose Ø inside | 19 mm |
| Soul | Soft PVC, black |
| Temperature range max. | 60 °C |
| Temperature range min. | -15 °C |
| Wall thickness | 2.4 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[205634] RIEGLER Water hose, soft PVC, hose ø 17x12,5, roll of 25 m](/web/image/product.template/267684/image_128/%5B205634%5D%20RIEGLER%20Water%20hose%2C%20soft%20PVC%2C%20hose%20%C3%B8%2017x12%2C5%2C%20roll%20of%2025%20m?unique=259f647)
|
Typennummer: WS17X13-25 |
27.76 € | |
![[205635] RIEGLER Water hose, soft PVC, hose ø 17x12,5, roll of 50 m](/web/image/product.template/267685/image_128/%5B205635%5D%20RIEGLER%20Water%20hose%2C%20soft%20PVC%2C%20hose%20%C3%B8%2017x12%2C5%2C%20roll%20of%2050%20m?unique=34bd229)
|
Typennummer: WS17X13-50 |
55.54 € | |

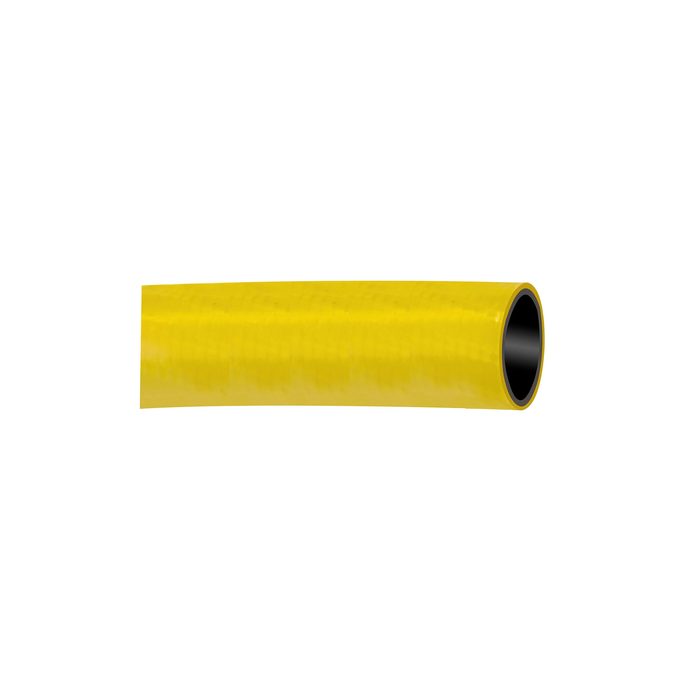

![[205636] RIEGLER Water hose, soft PVC, hose ø 23,8x19, roll of 25 m](/web/image/product.template/267844/image_128/%5B205636%5D%20RIEGLER%20Water%20hose%2C%20soft%20PVC%2C%20hose%20%C3%B8%2023%2C8x19%2C%20roll%20of%2025%20m?unique=666c4e2)
|
