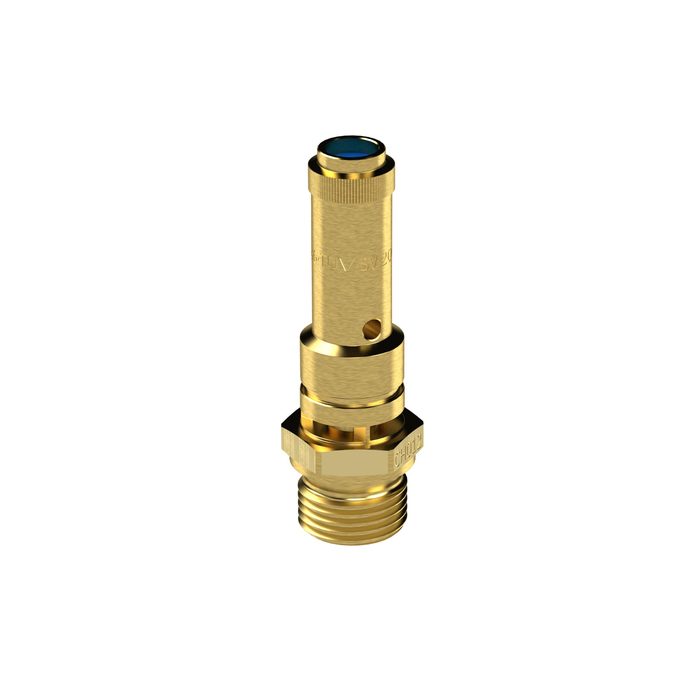

RIEGLER Safety valve DN 8, brass, G 3/8, set pressure 5.9 bar

Price:

26.91 €

English (US)
  2. Shop
  3. Safety valves & pressure relief valves
  4. RIEGLER Safety valve DN 8, brass, G 3/8, set pressure 5.9 bar
RIEGLER Full stroke safety valve DN 8, G 3/8, Trigger pressure 5.8 bar
RIEGLER Full stroke safety valve DN 8, G 3/8, Trigger pressure 5.8 bar
26.91 € 26.91 €
RIEGLER Full stroke safety valve DN 8, G 3/8, Trigger pressure 5 bar
RIEGLER Full stroke safety valve DN 8, G 3/8, Trigger pressure 5 bar
26.91 € 26.91 €

RIEGLER Safety valve DN 8, brass, G 3/8, set pressure 5.9 bar

https://www.filcom-technik.de/web/image/product.template/276113/image_1920?unique=ed34677

Typennummer: 226.02-5,9

26.91 € 26.91 EUR 26.91 € VAT Included

37.69 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

206145

EAN :

4047322720106

Category :

Safety valves & pressure relief valves

Weight :

0.09 kg

Safety valve DN 8, brass, operating temperature -25 °C to 180 °C, G 3/8, SW 20, set pressure 5.9 bar, type-tested

Housing Brass
Sealing material FKM
Operating pressure min. 0.2 bar
Max. operating pressure 50 bar
Operating temperature min. -25 °C
Operating temperature max. 180 °C
Thread G 3/8
SW 20 mm
Response pressure min. 5.9 bar
A 20 mm
C 63 mm
D 12 mm
Pressure spring Stainless steel
