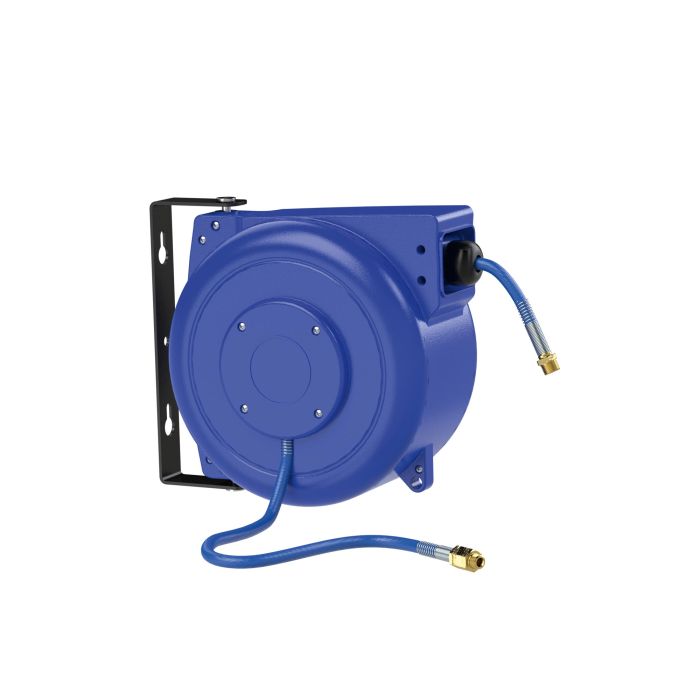

RIEGLER Hose reel, compressed air/water, PVC, ø 10x6.5, R 1/4, 15 m
Typennummer: SAR15M.15B.R14
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Hose reel for compressed air distribution, max. 15 bar - Type SAR15M.15B.R14
The RIEGLER hose reel, compressed air/water, PVC, ø 10x6.5, R 1/4, 15 m rolls up the compressed air hose automatically - for tidiness at the workplace. Designed for a maximum operating pressure of 15 bar. The operating temperature is between -15 °C and 60 °C. Hose Ø 6.5x10 mm, hose length 15 m. Automatic retraction for tidiness and quick readiness for use.
Field of application
Typical areas of application: Workshop, production and automotive operations.
| A | 340 mm |
| Area of application | for compressed air and water |
| B | 263 mm |
| Max. operating pressure | 15 bar |
| Operating temperature max. | 60 °C |
| Operating temperature min. | -15 °C |
| Thread input | R 1/4 |
| Class name | PLUS |
| Hose | PVC |
| Hose length | 15 m |
| Hose Ø | 6.5x10 mm |
| Swivelling | 180 ° |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

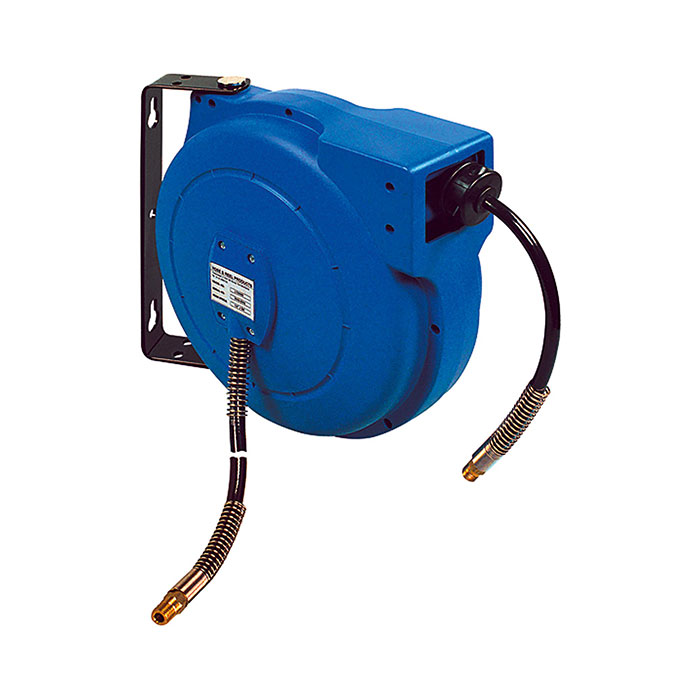

![[206189] RIEGLER Hose reel, PVC hose Ø 12x8, R 1/4, Hose length 8 m](/web/image/product.template/190170/image_128/%5B206189%5D%20RIEGLER%20Hose%20reel%2C%20PVC%20hose%20%C3%98%2012x8%2C%20R%201-4%2C%20Hose%20length%208%20m?unique=6b29079)
|
