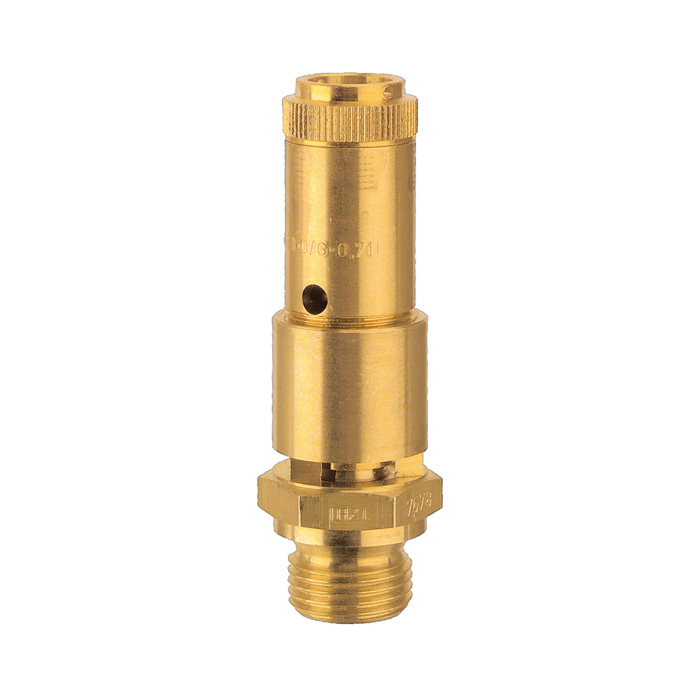

RIEGLER Safety valve DN 10, brass, G 3/4 Set pressure 10.7 bar

Price:

38.85 €

English (US)
  2. Shop
  3. Safety valves & pressure relief valves
  4. RIEGLER Safety valve DN 10, brass, G 3/4 Set pressure 10.7 bar
RIEGLER Full stroke safety valve DN 10, G 3/4, Trigger pressure 10.6 bar
RIEGLER Full stroke safety valve DN 10, G 3/4, Trigger pressure 10.6 bar
38.85 € 38.85 €
RIEGLER Full stroke safety valve DN 10, G 3/4, Trigger pressure 10 bar
RIEGLER Full stroke safety valve DN 10, G 3/4, Trigger pressure 10 bar
38.85 € 38.85 €

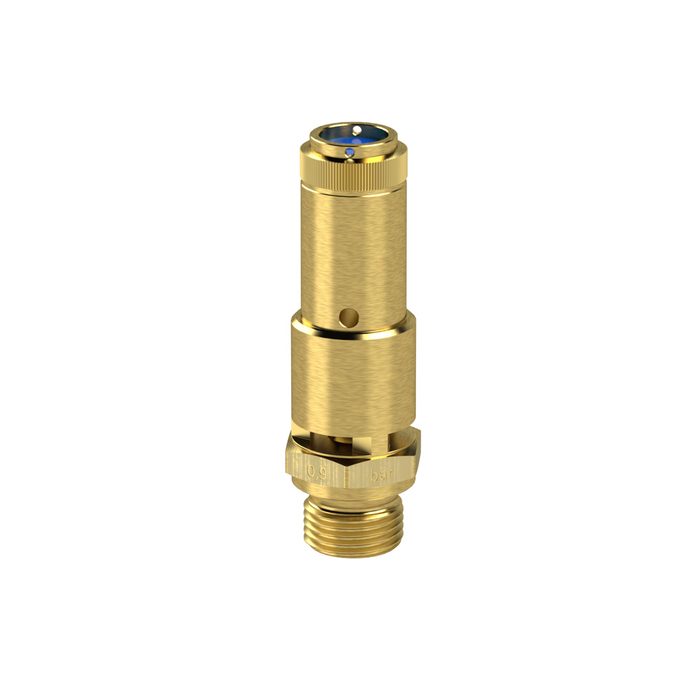

RIEGLER Safety valve DN 10, brass, G 3/4 Set pressure 10.7 bar

https://www.filcom-technik.de/web/image/product.template/276123/image_1920?unique=3c07053

Typennummer: 227.66-10,7

38.85 € 38.85 EUR 38.85 € VAT Included

54.43 € VAT Included


Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

206847

EAN :

4047322736411

Category :

Safety valves & pressure relief valves

Weight :

0.30 kg

Safety valve DN 10, brass, operating temperature -25 °C to 180 °C, G 3/4, SW 32, set pressure 10.7 bar, type-tested

Housing Brass
Sealing material FKM
Operating pressure min. 0.2 bar
Max. operating pressure 50 bar
Operating temperature min. -25 °C
Operating temperature max. 180 °C
Thread G 3/4
SW 32 mm
Response pressure min. 10.7 bar
A 32 mm
C 95 mm
D 16 mm
Pressure spring Stainless steel
Theme shop SAFETY
Class name PLUS
