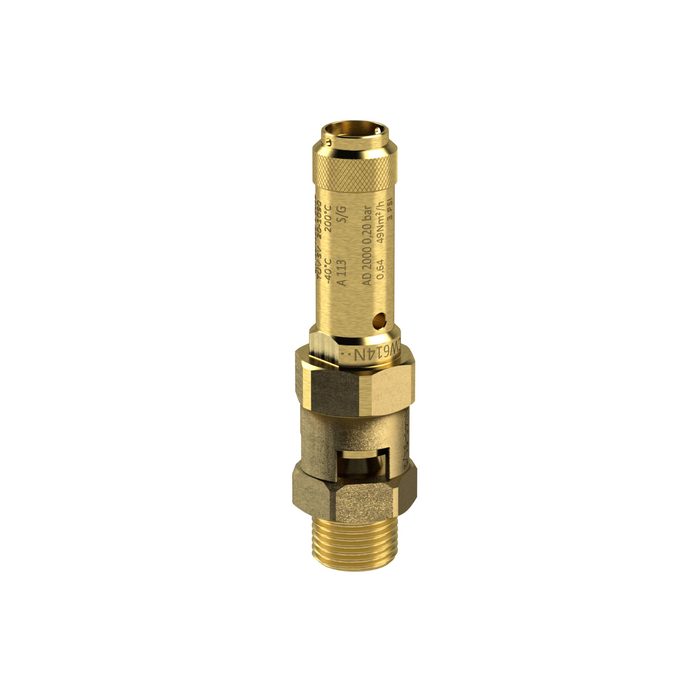

RIEGLER Safety valve, brass, G 1, response pressure 22 bar
Typennummer: 229.03-22,0
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
206926EAN :
4047322737128Category :
Safety Valves & Pressure Relief ValvesWeight :
0.68 kgRIEGLER Safety valve made of brass, for industrial systems, max. 26 bar - Type 229.03-22.0
The RIEGLER safety valve, brass, G 1, set pressure 22 bar reliably protects compressed air systems and containers against impermissible overpressure. The housing is made of brass with FPM seals. The operating pressure range is 0.5 bar to 26 bar. The operating temperature is between -40 °C and 200 °C. Connection thread G 1 - suitable for common industry standards. Reliable overpressure protection for safe systems.
Field of application
Typical areas of application: Pressure vessels, compressor systems and piping systems.
| Housing | Brass |
| Sealing material | FPM |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 26 bar |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 200 °C |
| Thread | G 1 |
| SW | 41 mm |
| Response pressure min. | 22 bar |
| A | 18 mm |
| H | 132 mm |
| Pressure spring | Carbon steel |
| do | 20 mm |
