Condor Control Pressure Switch MDR-F 12HEG-S
Condor MDR-F 12HEG-S
Compressed air / water: pressure switch compressor / pressure switch pump
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology
Condor control pressure switch MDR-F 12HEG-S 253730
1 changeover contact
Pressure range 1.00 - 12.00 bar
Gold-plated contacts
Pressure connection and pressure transducer element made of stainless steel for e.g. Liquid fuels, oils up to 200°C
industrial screw terminal
pressure connection: G 1/4" female thread
with scale for easy adjustment
cable glands stepped/choke rocker
DIN ISO 228/I, VDE 0660, IEC 337-1, IEC 553-1
according to EN 60947
Pressure switch type: HEC SBA A 060A070 see under Documents.
For further information see under Documents.
For the cable glands required for retrofitting and the cover, see "Accessories".
| Medium | Oil |
| Current version | Alternating current |
| Type of construction | Electro-mechanical |
| Tension | ≤ 250 V |
| Contact function | Changer |
| Rated frequency | 50 Hz / 60 Hz |
| Max. media temperature (°C) | 200 |
| Motor switching capacity (kW) | 0.55 kW |
| Protection class | IP 54, IP 65 |
| Thread / connection | G 1/4" female thread (main pressure connection 1/4"; pressure connection + pressure transducer element stainless steel) |
| Switch-on pressure adjustable (bar) | 0,5 ... 11,2 |
| Switch-off pressure adjustable (bar) | 1 ... 12 |
| small pressure difference (bar) | 0,5 0,8 |
| Weight (in g) | 520 |
| Model range - Pressure switch | MDR F |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

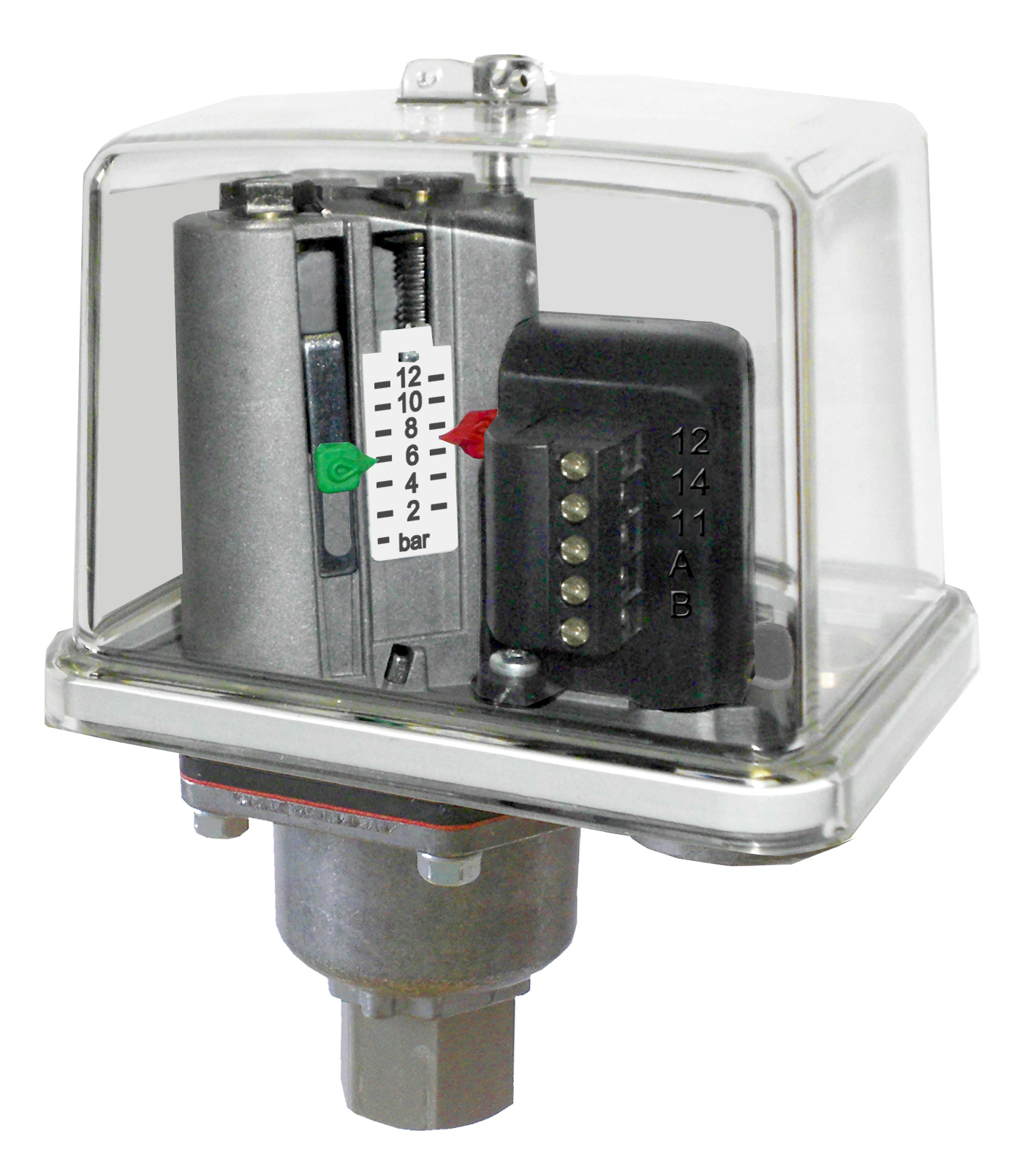

![[253723] Condor Control Pressure Switch MDR-F 12HE-S](/web/image/product.template/217874/image_128/%5B253723%5D%20Condor%20Control%20Pressure%20Switch%20MDR-F%2012HE-S?unique=a614884)
|
