Condor Pressure Switch MDR-F 60 HH-S
Condor MDR-F 60HH-S
Compressed air / water: pressure switch compressor / pressure switch pump
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology
Condor control pressure switch MDR-F 60HH-S 253761
1 changeover contact
Pressure range 8.00 - 60.00 bar
High-pressure switch with plastic piston as pressure transducer element with stainless steel connection
Industrial screw terminal
Pressure connection: G 3/8" female thread
with scale for easy adjustment
Cable glands stepped/choke nipple
DIN ISO 228/I, VDE 0660, IEC 337-1, IEC 553-1
according to EN 60947
Pressure switch type: HHA SAA A 200A400 see under Documents.
For further information see under Documents.
For the cable glands required for retrofitting and the cover, see "Accessories".
| Thread / connection | G 3/8" female thread (main pressure connection 3/8"; plastic piston as pressure transducer element and stainless steel connection + throttle) |
| Protection class | IP 54, IP 65 |
| Motor switching capacity (kW) | 0.55 kW |
| Max. media temperature (°C) | 70 |
| Current version | Alternating current |
| Type of construction | Electro-mechanical |
| Tension | ≤ 250 V |
| Contact function | Changer |
| Rated frequency | 50 Hz / 60 Hz |
| Weight (in g) | 570 |
| Medium | Air, water, oil |
| Switch-on pressure adjustable (bar) | 4 ... 52 |
| small pressure difference (bar) | 4 8 |
| Switch-off pressure adjustable (bar) | 8 ... 60 |
| Model range - Pressure switch | MDR F |
| Variants - Pressure Switch | MDR-F..HH |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

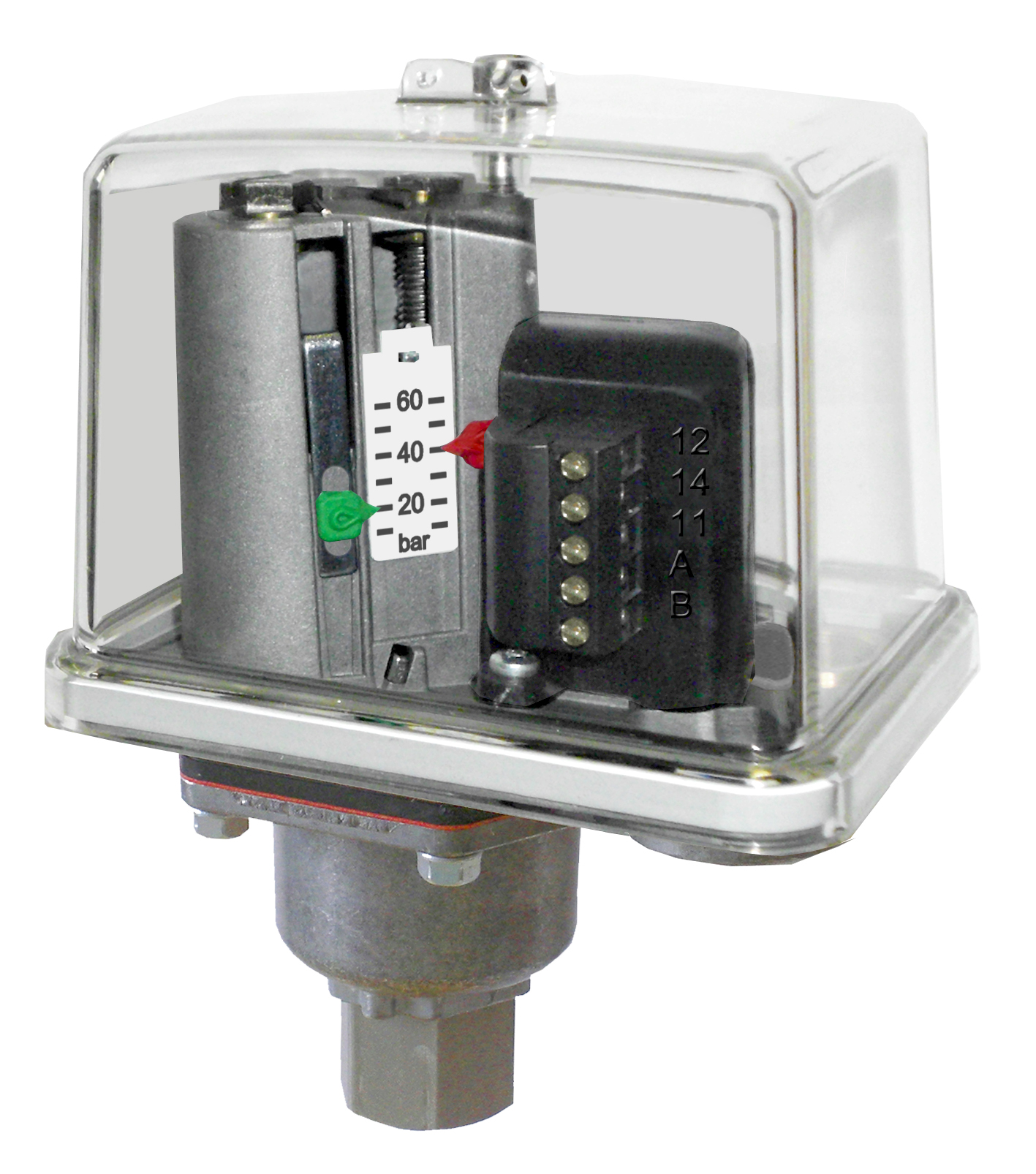

![[253778] Condor Control Pressure Switch MDR-F 60HHG-S](/web/image/product.template/217879/image_128/%5B253778%5D%20Condor%20Control%20Pressure%20Switch%20MDR-F%2060HHG-S?unique=9e0d2bf)
|
