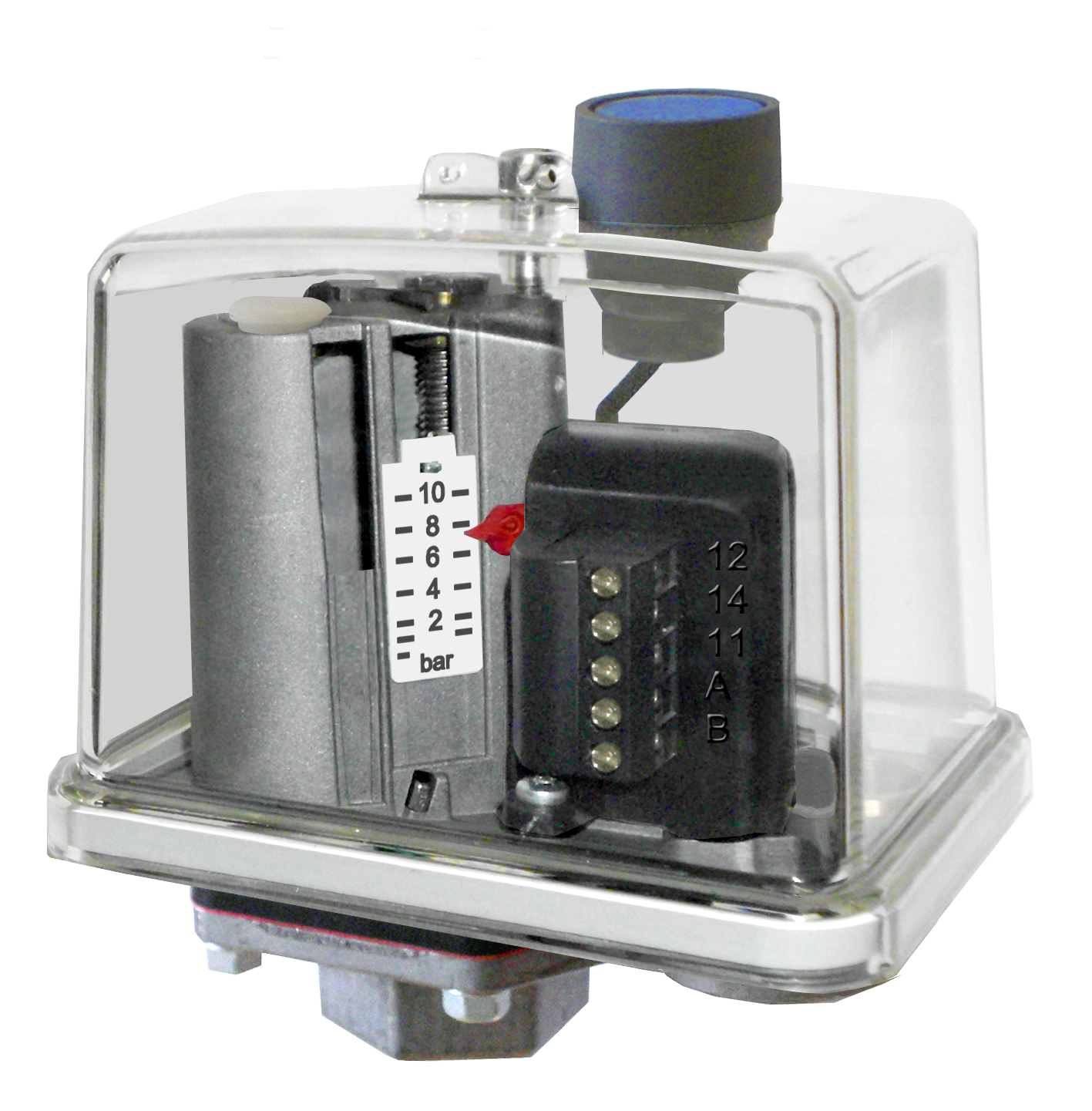

Condor Control Pressure Switch MDR-F 10Hmax-S
Condor MDR-F 10Hmax-S
Compressed air / water: pressure switch compressor / pressure switch pump
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology
Condor control pressure switch MDR-F 10Hmax-S 254096
1 changeover contact
Changeover contact with manual reset max.
Pressure range 0.7 - 10.00 bar
Pressure switch with reset function
Aluminum die-cast flange for oil, water and air etc.
Industrial screw terminal
Pressure connection: G 3/8" female thread
with scale for easy adjustment
Cable glands stepped/choke nipple
DIN ISO 228/I, VDE 0660, IEC 337-1, IEC 553-1
according to EN 60947
Pressure switch type: HAA SAH A XXXA075 see under Documents.
For further information see under Documents.
For the cable glands required for retrofitting and the cover, see "Accessories".
| Medium | Air, water, oil |
| Current version | Alternating current |
| Type of construction | Electro-mechanical |
| Tension | ≤ 250 V |
| Contact function | Changer |
| Rated frequency | 50 Hz / 60 Hz |
| Max. media temperature (°C) | 70 |
| Motor switching capacity (kW) | 0.55 kW |
| Protection class | IP 54, IP 65 |
| Thread / connection | G 3/8" female thread (main pressure connection 3/8", pressure connection = die-cast aluminum + NBR diaphragm) |
| Switch-off pressure adjustable (bar) | 0,7 ... 10 |
| Weight (in g) | 430 |
| Model range - Pressure switch | MDR F |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[254249] Condor Cable glands M20 - metal](/web/image/product.template/217770/image_128/%5B254249%5D%20Condor%20Cable%20glands%20M20%20-%20metal?unique=3c52239)
|
Condor cable gland for Condor control pressure switch MDR F |
8.81 € | |
![[254270] Condor MDR-F cover, transparent, standard](/web/image/product.template/217773/image_128/%5B254270%5D%20Condor%20MDR-F%20cover%2C%20transparent%2C%20standard?unique=4583e29)
|
Condor cover for Condor control pressure switch MDR F |
18.21 € | |
![[259503] Condor Cable glands M20 - plastic](/web/image/product.template/151664/image_128/%5B259503%5D%20Condor%20Cable%20glands%20M20%20-%20plastic?unique=becc3a0)
|
Condor cable gland for Condor control pressure switch MDR F |
4.17 € | |
