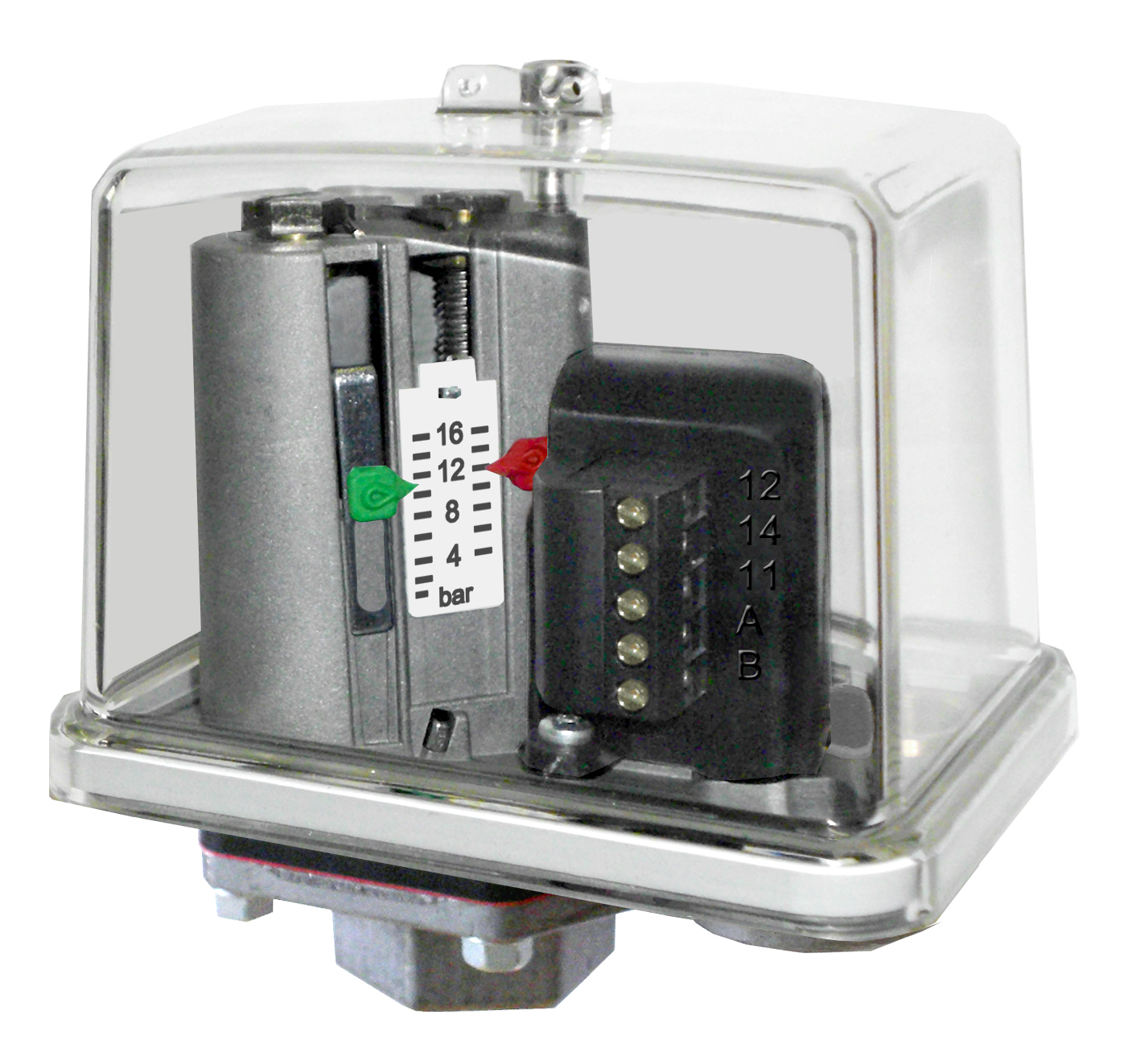

Condor Control Pressure Switch MDR-F 16H-S VdS
Condor MDR-F 16H-S VdS
Compressed air / water: pressure switch compressor / pressure switch pump
The Condor Group is a global leader in manufacturing components and system solutions for the control and regulation of pressure and level. With their extensive range, they cater to various industries and applications such as industrial automation and water and wastewater technology
Condor control pressure switch MDR-F 16H-S VdS 259107
1 changeover contact
Pressure switch with NBR diaphragm (Perbunan)
Pressure range 1.00 - 16.00 bar
Aluminum die-cast flange for water extinguishing systems
Industrial screw terminal
Pressure connection: G 1/2" female thread
with scale for easy adjustment
Cable glands stepped/choke nipple
DIN ISO 228/I, VDE 0660, IEC 337-1, IEC 553-1
according to EN 60947
Pressure switch type: HAB SAA A 110A120 A see under Documents.
For further information see under Documents.
For the cable glands required for retrofitting and the cover, see "Accessories".
| Medium | Air, water |
| Current version | Alternating current |
| Type of construction | Electro-mechanical |
| Tension | ≤ 250 V |
| Contact function | Changer |
| Rated frequency | 50 Hz / 60 Hz |
| Max. media temperature (°C) | 70 |
| Motor switching capacity (kW) | 0.55 kW |
| Protection class | IP 54, IP 65 |
| Thread / connection | MDR-F...H...VdS version with die-cast aluminum pressure connection + NBR diaphragm, G 3/8" internal thread; MDR-F...Y...VdS with plastic pressure connection + NBR diaphragm, G 1/2" internal thread |
| Switch-on pressure adjustable (bar) | 0,4 ... 14,5 |
| Switch-off pressure adjustable (bar) | 1 ... 16 |
| small pressure difference (bar) | 0,6 1,5 |
| Weight (in g) | 460 |
| Model range - Pressure switch | MDR F |
