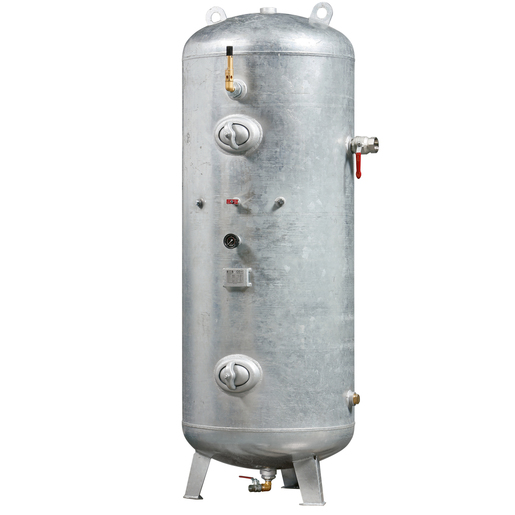

KAESER compressed air receiver 500/16 vertical version
Vertical version, maximum permissible overpressure 16 bar
Note (illustration):
The tank is supplied without fitting set / pressure gauge set.
We recommend ordering this as well!
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
| Design | standing |
| Volume of compressed air tank (litres) | 500 |
| Max. Overpressure (bar) | 16 |
| Diameter (mm) | 600 |
| Container height (mm) | 1918 |
| Compressed air inlet connection | G 1 |
| Compressed air outlet connection | G 1 rear |
| Safety valve connection | G ⅜" |
| Manometer set connection | G ¼" |
| Condensate drain connection | G 1½" |
| Container acceptance | DIRECTIVE 2014/68/EU |
| Maintenance opening according to AD2000 | 1x hand hole |
| Min. operating temperature (°C) | -10 |
| Max. Operating temperature (°C) | +80 |
| Surface coating | galvanized |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

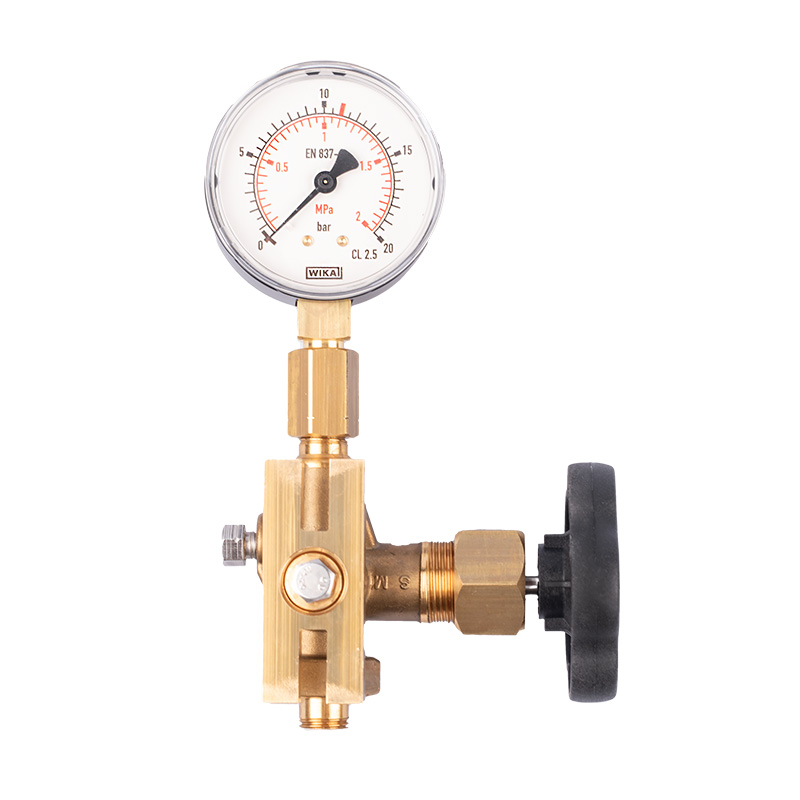

![[405331.00010] KAESER pressure gauge set test connection 0-25 bar G1/4](/web/image/product.template/234191/image_128/%5B405331.00010%5D%20KAESER%20pressure%20gauge%20set%20test%20connection%200-25%20bar%20G1-4?unique=829548a)
|
128.52 € | ||

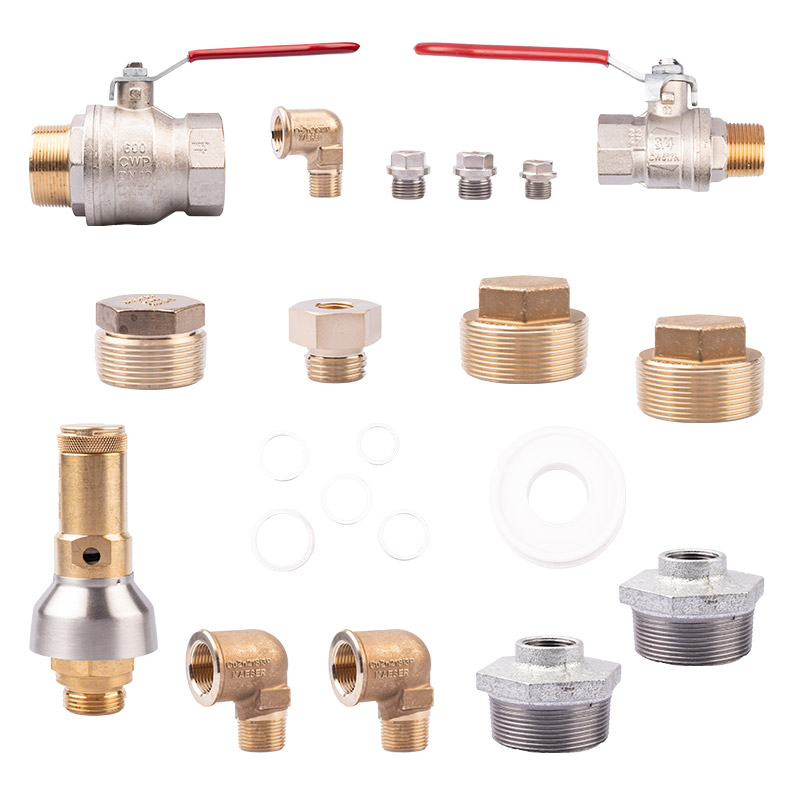

![[8.4413.2] KAESER fitting set for air receiver 500/16 vertical version](/web/image/product.template/258669/image_128/%5B8.4413.2%5D%20KAESER%20fitting%20set%20for%20air%20receiver%20500-16%20vertical%20version?unique=829548a)
|
Note image: Image similar |
332.01 € | |
