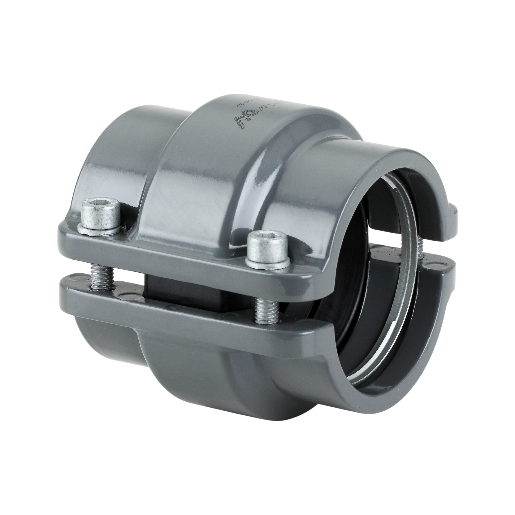

AIRpipe straight connector, DN20, nbr
AIRpipe specializes in providing high-performance piping systems for compressed air and noble gases. Their products are known for their durability, reducing operating costs, and increasing productivity
AIRpipe Straight connector, DN20, Nbr - Compressed air piping system
The AIRpipe straight connector, DN20, Nbr connects two compressed air pipe sections of the same nominal diameter in a straight line. Full passage cross-section without constriction. Clamping ring connection with wide contact surface and concentric seal - leak-free even with vibrations.
Technical data
- Nominal diameter: DN20 (OD 20.1 mm, ID 17.5 mm)
- Function: Straight compressed air pipe connection - leak-free, reusable
- Material: Powder-coated cast aluminum, corrosion-free, recyclable
- Passage: Full cross-section without constriction
- Operating pressure: Up to 15 bar (-20°C to +80°C), vacuum up to 1 mbar
Field of application
Extension of compressed air pipes. Connection of two compressed air pipe sections of the same nominal diameter.
| DN | 20 |
