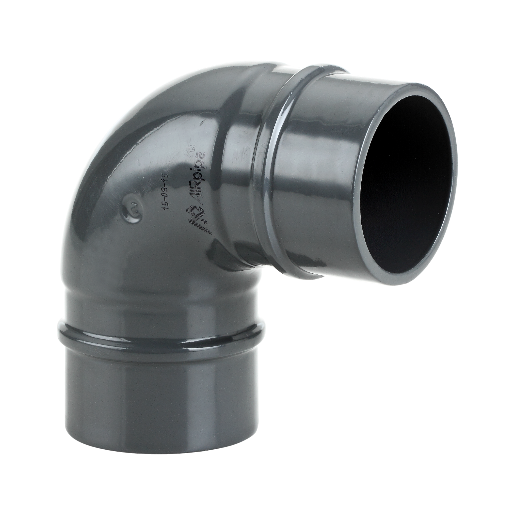

AIRpipe 90° angle, DN100
AIRpipe specializes in providing high-performance piping systems for compressed air and noble gases. Their products are known for their durability, reducing operating costs, and increasing productivity
AIRpipe 90° elbow, DN100 - Compressed air piping system
The AIRpipe 90° elbow, DN100 is a high-quality compressed air fitting made of aluminum for the AIRpipe compressed air piping system. The 90° elbow enables compact, right-angled pipe routing. Clamp connection with convex flared ring and concentric seal - leakage-free even with vibrations.
Technical data
- Nominal diameter: DN100 (OD 101.8 mm, ID 96.8 mm)
- Change of direction: 90° - compact cable routing, full through cross-section
- Material: Powder-coated cast aluminum, corrosion-free, non-flammable, 100% recyclable
- Operating pressure: Up to 15 bar (-20°C to +80°C), vacuum up to 1 mbar
- Media: Compressed air, vacuum, noble gases (N₂, Ar, He, CO₂)
Field of application
Compressed air distribution in industry and manufacturing. Ideal for tight spaces and right-angled pipe routing.
| DN | 100 |
