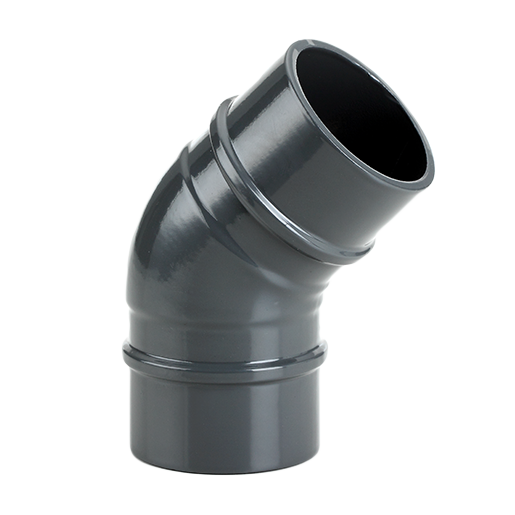

AIRpipe 45° angle, DN80
AIRpipe specializes in providing high-performance piping systems for compressed air and noble gases. Their products are known for their durability, reducing operating costs, and increasing productivity
AIRpipe 45° angle, DN80 - Compressed air piping system
The AIRpipe 45° elbow, DN80 is a high-quality compressed air fitting made of aluminum for the AIRpipe compressed air piping system. The 45° angle enables a flow-optimized change of direction with minimal pressure loss. Clamp connection with convex flared ring and concentric seal - leak-free even with vibrations.
Technical data
- Nominal diameter: DN80 (OD 84.8 mm, ID 80.0 mm)
- Change of direction: 45° - flow-optimized, full passage cross-section
- Material: Powder-coated cast aluminum, corrosion-free, non-flammable, 100% recyclable
- Operating pressure: Up to 15 bar (-20°C to +80°C), vacuum up to 1 mbar
- Media: Compressed air, vacuum, noble gases (N₂, Ar, He, CO₂)
- Certifications: ISO 9001, ISO 8573-1, PED 2014/68/EU, TÜV, CE
Field of application
Compressed air distribution in industry, manufacturing and workshops. For new installations and extensions to existing compressed air pipelines.
| DN | 80 |
