AIRpipe t-connection, DN40
AIRpipe specializes in providing high-performance piping systems for compressed air and noble gases. Their products are known for their durability, reducing operating costs, and increasing productivity

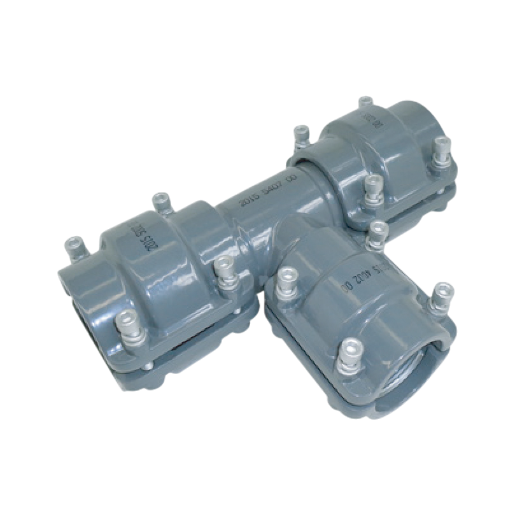

AIRpipe T-connection, DN40 - compressed air piping system
The AIRpipe T-connection, DN40 is a compressed air T-piece for the AIRpipe piping system. Branch of the compressed air line - reusable and modular. Clamping ring connection with wide contact surface and concentric seal - leak-free even with vibrations.
Technical data
- Nominal diameter: DN40 (OD 40.1 mm, ID 36.5 mm)
- Function: Compressed air T-piece - Quick-Connect on all three connections
- Material: Powder-coated cast aluminum, corrosion-free, recyclable
- Operating pressure: Up to 15 bar (-20°C to +80°C), vacuum up to 1 mbar
Field of application
Compressed air distribution in three directions. Modular extension of existing compressed air pipelines.
| DN | 40 |
