AIRpipe t-connection reduced, DN100-50
AIRpipe specializes in providing high-performance piping systems for compressed air and noble gases. Their products are known for their durability, reducing operating costs, and increasing productivity
AIRpipe T-connection reduced, DN100-50 - Compressed air piping system

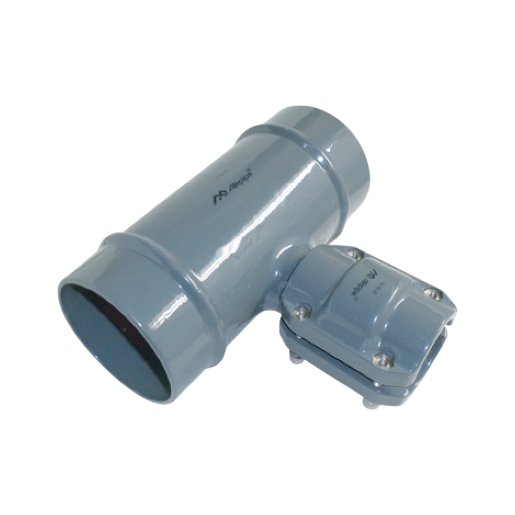

The AIRpipe T-connection reduced, DN100-50 is a compressed air T-piece reduced for the AIRpipe piping system. Branch of the compressed air line with reduced cross-section - reusable and modular. Clamp connection with convex flared ring and concentric seal - leakage-free even with vibrations.
Technical data
- Nominal diameter: DN100 (OD 101.8 mm, ID 96.8 mm)
- Function: Compressed air T-piece reduced - Quick-Connect on all three connections
- Material: Powder-coated cast aluminum, corrosion-free, recyclable
- Operating pressure: Up to 15 bar (-20°C to +80°C), vacuum up to 1 mbar
Field of application
Compressed air distribution in three directions. Modular extension of existing compressed air pipelines.
| DN | 100-50 |
