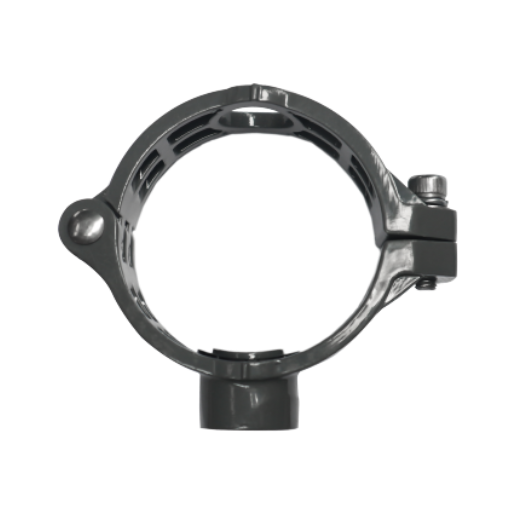

AIRpipe straight quick drop flange with inside thread, DN63-1/2" (drill 25mm)
AIRpipe specializes in providing high-performance piping systems for compressed air and noble gases. Their products are known for their durability, reducing operating costs, and increasing productivity
AIRpipe Straight Quick Drop flange With female thread, DN63-1/2" (drill 25mm) - Compressed air piping system
The AIRpipe straight quick drop flange with internal thread, DN63-1/2" (drill 25mm) is a straight quick drop flange with internal thread for the AIRpipe compressed air piping system. Quick extraction point directly on the main pipe - vertical and horizontal. Design principle prevents condensate ingress.
Technical data
- Nominal diameter: DN63
- Function: Compressed air flange with internal thread - tapping point on the main pipe, retrofittable
- Installation: Drill hole, attach flange - no welding, no thread cutting
- Condensate protection: Lateral connection prevents condensate ingress
- Operating pressure: Up to 15 bar (-20°C to +80°C)
Field of application
Quick compressed air extraction points for tools and machines. Can be retrofitted without dismantling the existing compressed air pipe.
| DN | 63 |
| Zoll | 1/2" |
