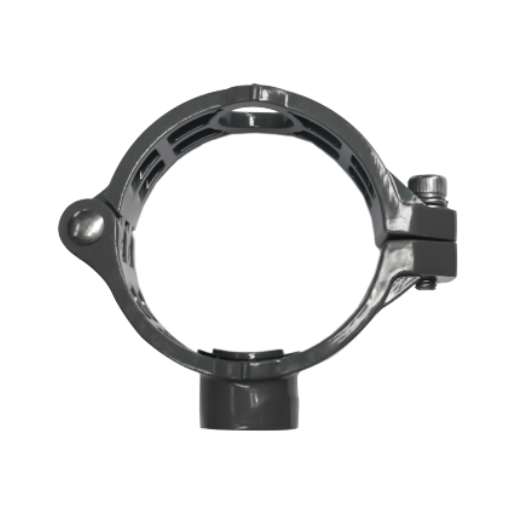

AIRpipe quick drop flange with inside thread, DN80-3/4" (drill 25mm)
AIRpipe specializes in providing high-performance piping systems for compressed air and noble gases. Their products are known for their durability, reducing operating costs, and increasing productivity
AIRpipe Quick drop flange With female thread, DN80-3/4" (drill 25mm) - Compressed air piping system
The AIRpipe Quick Drop flange with internal thread, DN80-3/4" (drill 25mm) is a quick-drop flange with internal thread for the AIRpipe compressed air piping system. Quick extraction point directly on the main pipe - vertical and horizontal. Design principle prevents condensate ingress.
Technical data
- Nominal diameter: DN80
- Function: Compressed air flange with internal thread - tapping point on the main pipe, retrofittable
- Assembly: Drill hole, attach flange - no welding, no thread cutting
- Condensate protection: Lateral connection prevents condensate ingress
- Operating pressure: Up to 15 bar (-20°C to +80°C)
Field of application
Quick compressed air extraction points for tools and machines. Can be retrofitted without dismantling the existing compressed air pipe.
| DN | 80 |
| Zoll | 3/4" |
