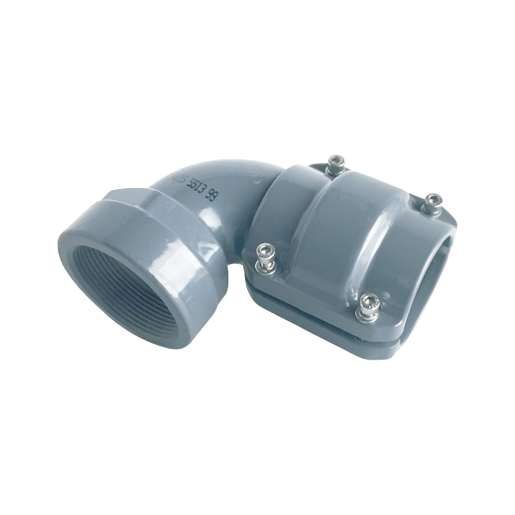

AIRpipe 90° angle inside thread BSPP, DN50-2"
AIRpipe specializes in providing high-performance piping systems for compressed air and noble gases. Their products are known for their durability, reducing operating costs, and increasing productivity
AIRpipe 90° elbow female thread BSP, DN50-2" - Compressed air piping system
The AIRpipe 90° elbow female thread BSP, DN50-2" is a high-quality compressed air fitting with female thread (BSP/BSPP) made of aluminum for the AIRpipe compressed air piping system. The 90° angle enables compact, right-angled pipe routing. Clamping ring connection with wide contact surface and concentric seal - leak-free even in the event of vibrations.
Technical data
- Nominal diameter: DN50 (OD 50.1 mm, ID 45.7 mm)
- Connection: with female thread (BSP/BSPP) - transition to existing threaded connections
- Change of direction: 90° - compact cable routing, full through cross-section
- Material: Powder-coated cast aluminum, corrosion-free, non-flammable, 100% recyclable
- Operating pressure: Up to 15 bar (-20°C to +80°C), vacuum up to 1 mbar
- Media: Compressed air, vacuum, noble gases (N₂, Ar, He, CO₂)
Field of application
Compressed air distribution in industry and manufacturing. Ideal for tight spaces and right-angled pipe routing.
| DN | 50 |
| Zoll | 2" |
