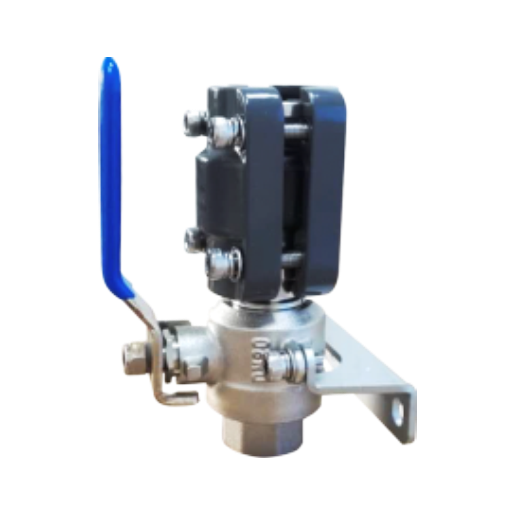

AIRpipe lockable ball valve, DN20-BSPP 1/2" inside thread, with wall bracket
AIRpipe specializes in providing high-performance piping systems for compressed air and noble gases. Their products are known for their durability, reducing operating costs, and increasing productivity
AIRpipe Lockable ball valve, DN20-BSPP 1/2" female thread, With wall bracket - Compressed air piping system
The AIRpipe lockable ball valve, DN20-BSPP 1/2" female thread, with wall bracket is a lockable ball valve for the AIRpipe compressed air piping system. The full-flow shut-off valve enables fast shut-off with minimal pressure drop.
Technical data
- Nominal diameter: DN20
- Flow rate: Full flow - minimum pressure drop
- Operation: Quarter turn to open/close
- Security: Lockable - access protection against unauthorized operation
- Connection: BSP thread, flange or Quick-Connect available
- Operating pressure: Up to 15 bar (-20°C to +80°C)
Field of application
Compressed air shut-off valve for tapping points and pipe sections. Available with BSP thread, flange or Quick-Connect.
| DN | 20 |
| Zoll | 1/2" |
