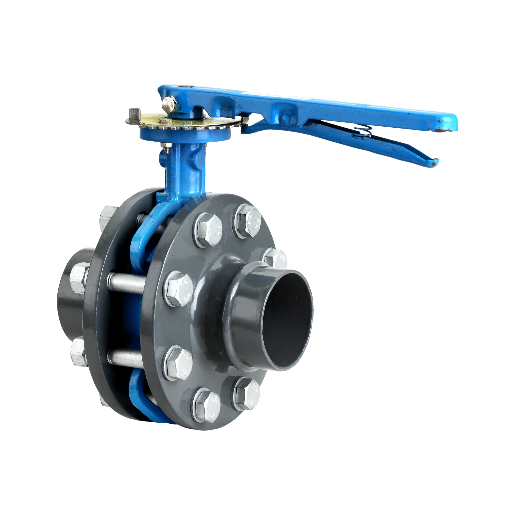

AIRpipe lockable stopcock, cast iron housing, stainless steel round flanch, DN80
AIRpipe specializes in providing high-performance piping systems for compressed air and noble gases. Their products are known for their durability, reducing operating costs, and increasing productivity
AIRpipe Lockable ABS stopcock, cast iron housing, stainless steel round flange, DN80, Nbr - Compressed air piping system
The AIRpipe lockable air shut-off valve, cast iron body, stainless steel round flange, DN80, Nbr is a lockable compressed air shut-off valve with cast iron body and stainless steel round flange. Full bore for minimal pressure drop. Flanges supplied fully assembled.
Technical data
- Nominal diameter: DN80
- Casing: Cast iron - robust, suitable for industrial use
- Flange: Stainless steel round flange to EN 1092-1
- Security: Lockable - access protection against unauthorized operation
- Passage: Full flow cross-section - minimal pressure drop
- Operating pressure: Up to 15 bar (-20°C to +80°C)
Field of application
Shut-off of individual line sections in the compressed air distribution. Can be used directly on the compressor, air dryer or air filter outlet.
| DN | 80 |
