Wortmann Oil-water-seperators model drukomat 15+ with preko-filter
Drukomat 15plus oil water separator, new unit incl. a filter set.
up to 25 m³/min compressor capacity with better efficiency.
Professional condensate treatment with an oil separator / water separator to protect the compressed air system or compressor. The Wortmann oil-water separator reliably separates oily condensate and ensures oil-free compressed air.
Wortmann
For over 35 years, Wortmann has been providing practical system solutions for compressed air treatment.

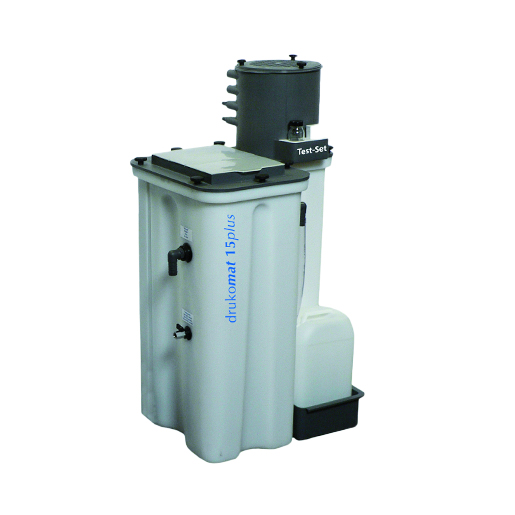

Wortmann Drukomat 15plus oil water separator 3215, incl. a filter set.
The Drukomat 15plus reliably de-oils the condensate produced through a combination of deflection and calming chamber, as well as a series connection of coalescence and activated carbon filter directly at the point of origin.
The treated condensate can be discharged directly into the sewer system as purified water.
New with Preko flow filter
- self-cleaning
-better efficiency
-greater performance with extended filter service life
The Preko flow filter ensures that the finely dispersed oil droplets in the condensate adhere to any oil present and are forced to float due to the direction of flow in the Preko filter.
The Preko flow filter has proven to be highly efficient and is even self-cleaning due to its design and the direction of flow of the condensate.
Filtration:
1 x preco filter
1 x combination filter activated carbon filter
1 x exhaust air side
The Drukomat has building authority approval Z-54.8-85 from the German Institute for Building Technology and does not require approval under water law.
For further technical data, see "Downloads" below.
| Max. Compressor capacity (m³/min) | 15 |
| Height (mm) | 1.160 |
| Width (mm) | 620 |
| Depth (mm) | 520 |
| Condensate inlet connection | 4x 1/2" |
| Water drain connection | 1" |
| Oil drain connection | 1" |
| Filtering exhaust air (l) | 1.088 |
| Water filtration (litres) | W15 plus |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[WO-3315] Wortmann Replacement filterset for Drukomat 15 plus](/web/image/product.template/121802/image_128/%5BWO-3315%5D%20Wortmann%20Replacement%20filterset%20for%20Drukomat%2015%20plus%20?unique=78217d1)
|
Replacement filter set drukomat 15 plus water side The original in top quality Activated charcoal replacement filter for Drukomat 15 plus High-quality replacement filters for oil separators and water separators. |
523.60 € | |
