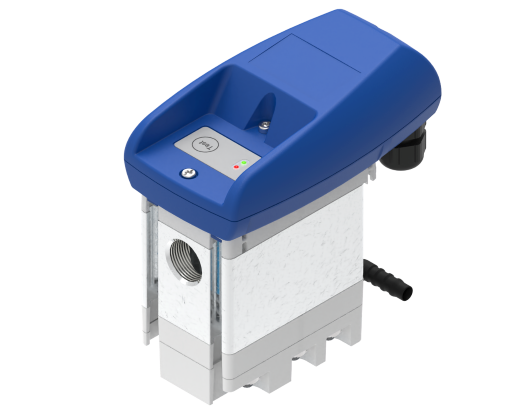

BEKO condensate drain BEKOMAT 32U V built-in 100-240 VAC, OL, FKM
For over thirty years, BEKO TECHNOLOGIES has been synonymous with powerful compressed air and compressed gas technology, tested worldwide. We represent quality "made in Germany" and values that are lived by BEKO TECHNOLOGIES
BEKO BEKOMAT 32U V built-in 100-240 VAC condensate drain 4042092
The BEKOMAT® condensate drains work with a capacitive sensor. The electronic level control of the BEKOMAT® guarantees that the condensate is drained without any loss of compressed air and minimizes energy consumption. For this reason, the BEKOMAT® often pays for itself within six months compared to devices with time-controlled drain valves. This not only saves energy and therefore costs, but also CO2 emissions.

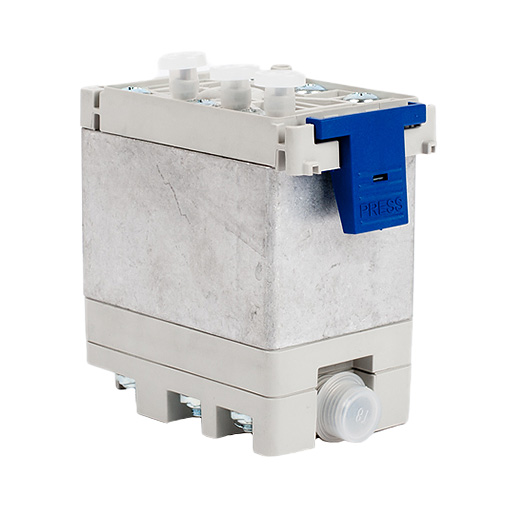

Thanks to the integrated and manufacturer-tested ServiceUnit, all wearing parts in the corrosion-resistant aluminum housing can be replaced with just one handle. No tools are required. The condensate collection container always remains in the compressed air network.
The BEKOMAT advantages at a glance:
- No unnecessary compressed air losses
- Discharge according to volume- Sensor detects every type of condensate
- Insensitive to dirt
- Low maintenance
- Fully automatic monitoring
| Relative humidity of the environment | ≤10 ... 80 %, without condensation |
| max. operating height | 3000 m |
| Min. / max. operating pressure (bar) | 0,8 ... 16 |
| Min. / max. operating temperature (°C) | +1 … 70 |
| Average discharge quantity | 54,8 l/h |
| Max. Ableitmenge (kurzzeitig) | 75 l/h |
| Condensate inlet connection | 1 x G1/2" internal, maximum screw-in depth: 13.5 mm (1/2 in) |
| Condensate drain connection | 1 x G1/4" external, hose nozzle for hose diameter 8 ... 10 mm (0.31 ... 0.39 in) internal |
| Media | Kondensat, ölhaltig oder ölfrei |
| Operating voltage | 100 … 240 VAC ±10% (50 … 60 Hz) oder 24 VAC -10%/+20% (50 … 60 Hz) oder 24 VDC -10%/+20% (siehe Typenschild) |
| Power consumption | 6,5 … 8 VA |
| Protection class (IP) | 67 |
| Housing class | Type 13 |
| Overvoltage category (IEC 61010-1) | II |
| Pollution degree (IEC 61010-1) | 2 |
| Connection data potential-free contact | AC: maximum 250 V / 1A DC: maximum 30 V / 1A |
| Recommended cable diameter | 5 … 10 mm |
| Recommended wire cross-section | 0.75 … 1.5 mm² |
| Housing | Aluminum and plastic, glass fiber reinforced |
| Membrane | FKM |
