BEKO Active Oil-water separator QWIK-PURE 90 (with M12 plug)
BEKO QWIK-PURE 90 (M12) - The intelligent high-performance solution for active condensate treatment up to 90 m³/min. The system with six cartridges and M12 connection guarantees maximum process reliability and precise maintenance planning for industrial systems.
- Performance: Up to 90 m³/min for large industrial stations.
- Intelligence: M12 connector for connection to the FRC controller.
- Technology: Active flow prevents filter blockage.
- Hygiene: Safe, tool-free cartridge change without contact with harmful substances.
- Legally safe: DIBt-certified (residual oil content max. 10 mg/l).
For over thirty years, BEKO TECHNOLOGIES has been synonymous with powerful compressed air and compressed gas technology, tested worldwide. We represent quality "made in Germany" and values that are lived by BEKO TECHNOLOGIES
BEKO QWIK-PURE 90: Maximum capacity with intelligent monitoring
The BEKO oil-water separator model QWIK-PURE 90 with M12 plug (item no. 4058158) represents the highest expansion stage of active condensate treatment. While conventional separators work purely passively, the QWIK-PURE 90 uses light blasts of compressed air to actively guide the condensate through the six filter cartridges. The integrated M12 connector allows communication with an FRC controller, which means that the saturation level of the filters can be precisely monitored at all times.
This system is the ideal choice for large-scale industrial applications in the FILCOM online shop that place the highest demands on process reliability and predictive maintenance.
Your advantages with the active QWIK-PURE 90:
- Active mode of operation: The condensate is pressed through the filters in a controlled manner. This effectively suppresses the formation of impermeable boundary layers and bacterial cultures, even at extremely high flow rates.
- Intelligent connection: The system status is transmitted to the control unit via the M12 connector. This enables needs-based maintenance and prevents unnecessary filter changes while ensuring maximum safety.
- Hygienic & safe: The hermetically sealed cartridges protect personnel from direct contact with harmful substances. Free oils are safely bound inside.
- Six-cartridge system: The load distribution over six units maximizes the filter service life and ensures a constantly low residual oil concentration in the wastewater.
- Ergonomic handling: Each saturated cartridge weighs a maximum of 25 kg and can be easily replaced using the inlet tube as a sturdy handle.
- Certified legal certainty: The DIBt approval guarantees reliable compliance with the legal discharge values (max. 10 mg/l residual oil content).
Maintenance & service for the QWIK-PURE 90:
- No pre-soaking: The standard cartridges are ready for immediate use - the time-consuming pre-soaking process is completely eliminated compared to passive systems.
- Maintenance without downtime: Inflowing condensate is buffered in the pressure relief chamber during the changeover so that your production continues without interruption.
- Clean change: The integrated bottom valve closes automatically when removed. The cartridge is securely sealed for removal with the blind plugs supplied.
- Sustainability: The filter material of all six cartridges is fully utilized thanks to the active flow. This results in optimum service life and an improved environmental footprint.
| Max. Condensate flow rate (l/h) | 114 |
| Min/max. temperature (°C) | +5 ... +50 |
| Relative humidity of the environment | ≤10 ... 80 %, without condensation |
| Weight (kg) | 60 |
| Min. / max. operating pressure (bar) | 3 ... 15 |
| Cleanliness class, compressed air | 2:4:2 |
| Operating voltage | 90 ... 264 VAC / 24 VDC |
| Frequency range (Hz) | 50 ... 60 |
| Max. Compressor capacity (m³/min) | 92,6 |
| Operating mode | active |
| Condensate inlet connection | 3 x G1/2", external | 1 x G1", external | Hose nozzle |
| Condensate drain connection | 1 x 23 mm (0.91 in), external, hose nozzle |
| Media | Compressor condensate, containing oil |
| Max. Oil concentration at | 10 |
| Max. Operating pressure at condensate inlet | 16 |
| Required number of replacement cartridges | 6 |
| Compressed air connection | 8 mm (0.31 in), external, hose nozzle |
| Power consumption (VA) | 28 |
| Protection class (IP) | 54 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

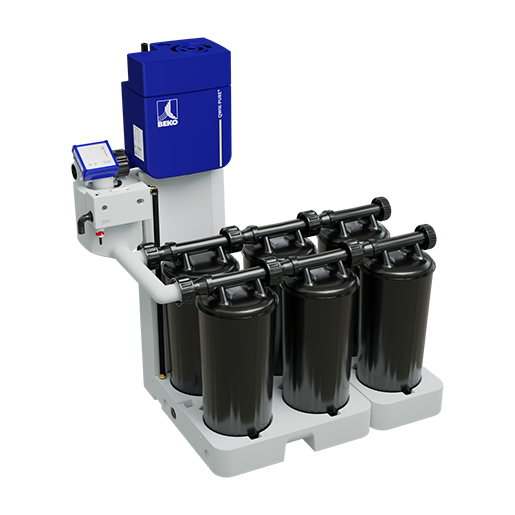

![[4055896] BEKO Active Oil-water separator QWIK-PURE 90 (with 3 meter power cable)](/web/image/product.template/236906/image_128/%5B4055896%5D%20BEKO%20Active%20Oil-water%20separator%20QWIK-PURE%2090%20%28with%203%20meter%20power%20cable%29?unique=e66b540)
|
