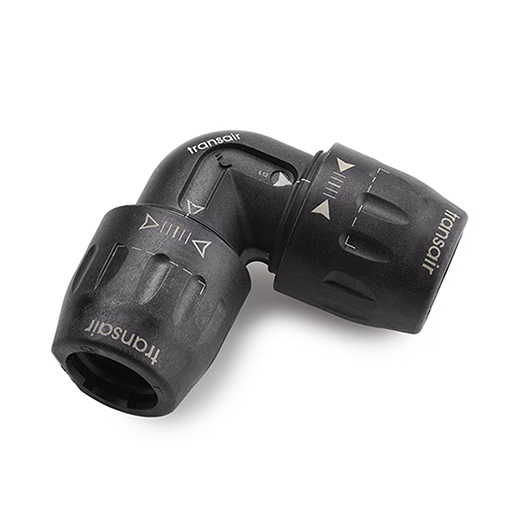

Transair Legris Angle, 40 mm, 90°

Compressed air pipe bend 90° for distribution lines Ø 40

90° angle for changes of direction in Transair Ø 40 distribution lines. Can be dismantled from the side - simplifies conversion and expansion during operation.

Technical data

- Max. Operating pressure: 16 bar (-20°C to +45°C), 13 bar (-20°C to +60°C)
- Connection technology: Quick connector with toothed washer
- Operating temperature: -20°C to 85°C
- Suitable media: Compressed air, vacuum, nitrogen, inert gases

Application areas

Wherever the cable routing changes direction: around corners, supports and machines, across gates and passageways. Compact diverter for tight spaces in production halls, workshops and supply shafts.
