Transair Legris Screw-in connection, 40 x 11/2 "a
Transair®, a division of Parker, specializes in the development and manufacturing of compressed air supply solutions tailored to the demanding needs of industrial applications
Transair Legris screw-in connection Ø40 × 1½" BSP conical - 66054049
Connects Transair Ø 40 pipes with 1½" threaded connections - large cross-section for high volume flow at main distributors.
Technical data
- Connection: Transair Ø40 to 1½" BSP conical
- Max. Operating pressure: 16 bar (-20°C to +45°C), 13 bar (-20°C to +60°C)
- Seal: NBR - leak-proof without additional sealing material
- Suitable media: Compressed air, vacuum, nitrogen, inert gases
Application areas
Wherever Transair lines are connected to existing threaded installations: Compressors, dryers, filters, pressure reducers, machines and existing lines made of steel pipe. Also for breathing air distribution systems and inert gas applications in the chemical and pharmaceutical industries.
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[6605 40 42] Transair Legris Screw-in connection, 40 x 11/4 "a](/web/image/product.template/150506/image_128/%5B6605%2040%2042%5D%20Transair%20Legris%20Screw-in%20connection%2C%2040%20x%2011-4%20%22a?unique=34d466e)
|
77.00 € | ||

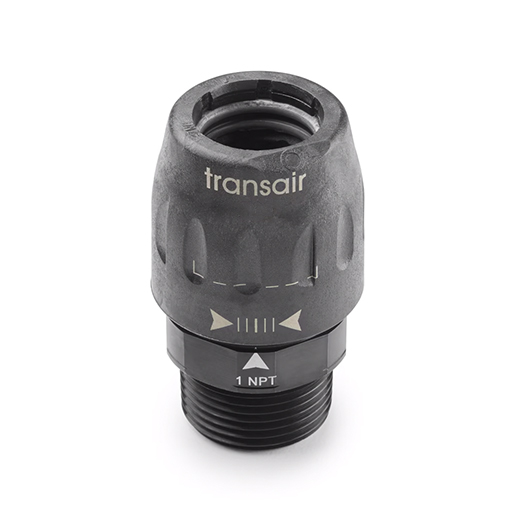

![[6605 40 34] Transair Legris screw-in connection, 40 x 1 "a](/web/image/product.template/150504/image_128/%5B6605%2040%2034%5D%20Transair%20Legris%20screw-in%20connection%2C%2040%20x%201%20%22a?unique=34d466e)
|
69.34 € | ||
