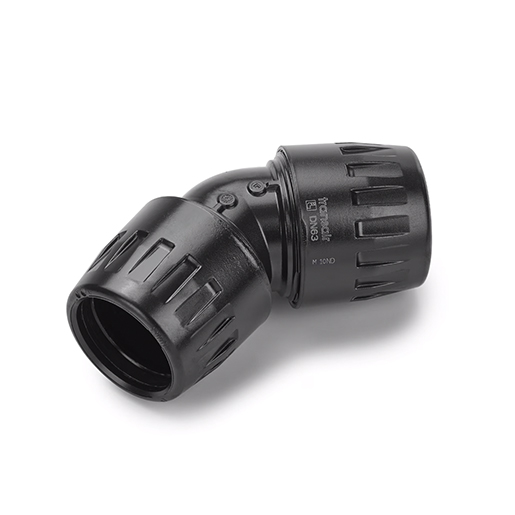

Transair Legris Angle, 63 mm, 45°

Flow-optimized 45° bend for main line Ø 63

45° angle for directional adjustments in Transair Ø 63 main lines. Minimal pressure loss due to flat angle - recommended for energy-efficient ring main systems.

Technical data

- Max. Operating pressure: 13 bar (-20°C to +60°C), 7 bar (-20°C to +85°C)
- Connection technology: SnapRing quick connector
- Operating temperature: -20°C to 85°C
- Suitable media: Compressed air, vacuum, nitrogen, inert gases

Application areas

Wherever the pipe routing changes direction: around corners, supports and machines, across gates and passageways. 45° angles are particularly recommended in places with a high flow rate - they reduce the pressure loss by up to 50 % compared to 90° angles.
