WAHLER oil temperature regulator 45 °C - 7052.45
As part of Thermal Management Solutions, WAHLER offers a wide range of high-quality thermostats and oil temperature thermostats built to OE standards. With over 120 years of engineering expertise and more than six million units sold annually, WAHLER is one of the leading global brands in thermal management.

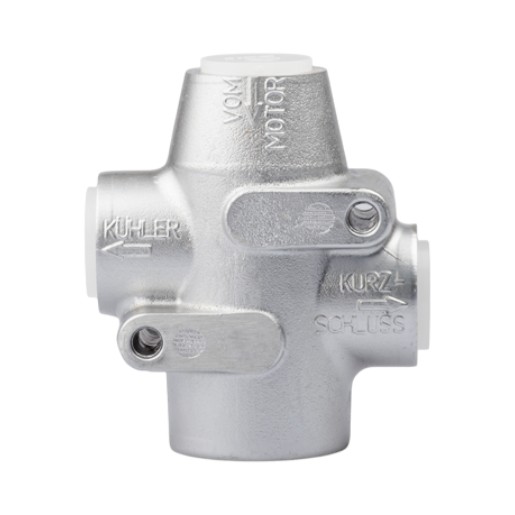

WAHLER oil temperature regulator 45 °C - Type 7052
The WAHLER oil temperature regulator type 7052 with an opening temperature of 45 °C ensures reliable control of oil and cooling circuits. The temperature-dependent wax element operates the regulator precisely so that the oil flow is only directed via the cooler when the optimum temperature is reached. The robust aluminum housing and pressure resistance up to 16 bar enable safe use in demanding industrial and vehicle applications. With its M26 x 1.5 connection thread, the regulator can be easily integrated into various systems.
Application areas
- Compressors
- Cooling and lubrication circuits
- Agricultural and construction machinery
- Hydraulic and industrial applications
Advantages
- Precise switching at 45 °C
- Pressure-independent control behavior
- Robust, maintenance-free construction
- High reliability even with vibrations and changing loads
| Controller type | 7052 |
| Opening temperature | 45 °C |
| Pressure resistance (bar) | 16 |
| Connection thread | M26 x 1,5 |
| Temperature range (°C) | -40 °C to + 160 °C (unpressurized) |
| Control media | Water-glycol mixture, mineral oils |
| Hysteresis | 4 °C - 5 °C |
| Housing material | Aluminum |
| Flow rate (l/min) | 67 |
| Flow rate (l/h) | 4.000 |
| Flow rate (m³/h) | 4 |
