WAHLER oil temperature regulator 83 °C - 7053.83
As part of Thermal Management Solutions, WAHLER offers a wide range of high-quality thermostats and oil temperature thermostats built to OE standards. With over 120 years of engineering expertise and more than six million units sold annually, WAHLER is one of the leading global brands in thermal management.

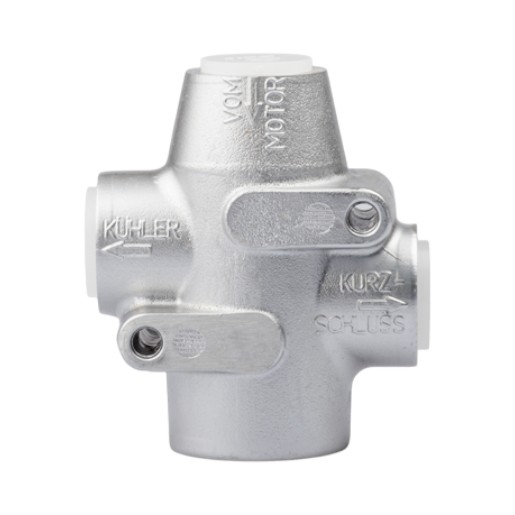

WAHLER oil temperature regulator 83 °C - Type 7053
The WAHLER oil temperature regulator type 7053 with an opening temperature of 83 °C ensures precise and reliable control of oil and cooling circuits. Inside, a temperature-dependent wax element (thermostatic element) works, which expands when heated and actuates the regulator precisely. As a result, the oil flow is only directed via the cooler when the required operating temperature is reached. The robust aluminum housing and the high pressure resistance up to 16 bar enable use in demanding industrial, hydraulic and vehicle applications. The G 3/4" connection thread allows the regulator to be flexibly and safely integrated into a wide variety of systems.
Application areas
- Compressors
- Cooling and lubrication circuits
- Agricultural and construction machinery
- Hydraulic and industrial applications
Advantages
- Precise switchover at 83 °C
- Reliable, pressure-independent control behavior
- Maintenance-free wax element/thermostatic element for a long service life
- Robust construction, insensitive to vibrations and load changes
| Controller type | 7053 |
| Opening temperature | 83 °C |
| Pressure resistance (bar) | 16 |
| Connection thread | G 3/4" |
| Temperature range (°C) | -40 °C to + 160 °C (unpressurized) |
| Control media | Water-glycol mixture, mineral oils |
| Hysteresis | 4 °C - 5 °C |
| Housing material | Aluminum |
| Flow rate (l/min) | 67 |
| Flow rate (l/h) | 4.000 |
| Flow rate (m³/h) | 4 |
