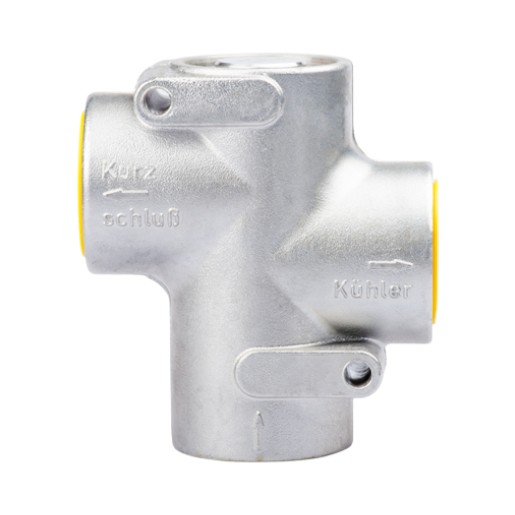

WAHLER oil temperature regulator 70 °C - 7095.70
As part of Thermal Management Solutions, WAHLER offers a wide range of high-quality thermostats and oil temperature thermostats built to OE standards. With over 120 years of engineering expertise and more than six million units sold annually, WAHLER is one of the leading global brands in thermal management.
WAHLER oil temperature regulator 70 °C - Type 7095 in robust original quality
The WAHLER oil temperature regulator type 7095 with an opening temperature of 25 °C reliably regulates oil and cooling circuits via a precise 3/2-way valve. The wax element ensures temperature-controlled switching, while the robust aluminum housing and pressure resistance up to 16 bar ensure safe use even under demanding conditions. The G 1 1/4" connection thread allows the regulator to be flexibly integrated into various systems.
Application areas
- Compressors & cooling systems
- Agricultural and construction machinery
- Gearboxes, hydraulics & industrial applications
Advantages
- Precise temperature control at 70 °C
- Pressure-independent 3/2-way function
- High flow rate
- Robust aluminum construction
- Maintenance-free & vibration-resistant
| Controller type | 7095 |
| Opening temperature | 70 °C |
| Pressure resistance (bar) | 16 |
| Connection thread | G 1 1/4" |
| Temperature range (°C) | -40 °C to + 160 °C (unpressurized) |
| Control media | Water-glycol mixture, mineral oils |
| Hysteresis | 4 °C - 5 °C |
| Housing material | Aluminum |
| Flow rate (l/min) | 167 |
| Flow rate (l/h) | 10.000 |
| Flow rate (m³/h) | 10 |
