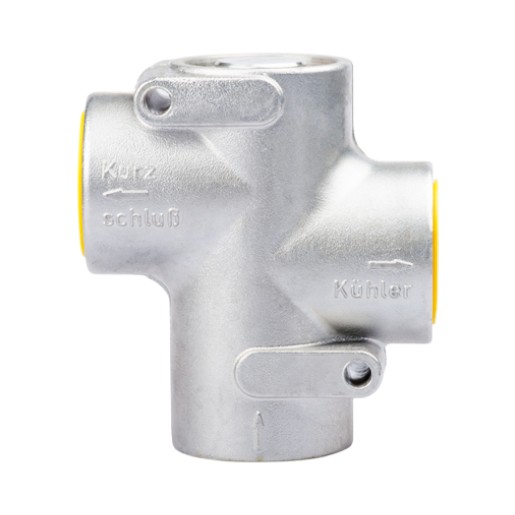

WAHLER oil temperature controller 55 °C - 7096.55
As part of Thermal Management Solutions, WAHLER offers a wide range of high-quality thermostats and oil temperature thermostats built to OE standards. With over 120 years of engineering expertise and more than six million units sold annually, WAHLER is one of the leading global brands in thermal management.
WAHLER oil temperature regulator 55 °C - Type 7096 in robust original quality
The WAHLER oil temperature regulator type 7096 with an opening temperature of 55 °C was developed for demanding applications in oil and cooling circuits. Its precise 3/2-way valve controls the oil flow reliably and reacts exactly to temperature changes. The core of the regulator is a high-quality wax element that ensures stable, reproducible control characteristics. The robust aluminum construction, high pressure resistance and vibration-resistant design make the regulator particularly durable and maintenance-free.
Thanks to its pressure-independent mode of operation, the controller works reliably in a wide range of operating conditions - even in highly fluctuating operating states. This makes the type 7096 ideal for modern thermal management systems in industrial and mobile applications.
Application areas
- Compressors
- Coolers and oil cooling systems
- Agricultural and construction machinery
- Mechanical engineering and hydraulic systems
- Sonderanwendungen wie Windkraftanlagen oder Getrieben
Advantages
- Precise 3/2-way valve for exact temperature control
- Fest eingestellte Temperaturwerte für maximale Prozesssicherheit
- Pressure-independent operation
- Low pressure losses at high flow rates
- Long service life & maintenance-free design
- Vibration and shock resistant
- Works regardless of the installation position
- Robust aluminum housing for demanding operating conditions
| Controller type | 7096 |
| Opening temperature | 55 °C |
| Pressure resistance (bar) | 16 |
| Connection thread | G 1 1/2" |
| Temperature range (°C) | -40 °C to + 160 °C (unpressurized) |
| Control media | Water-glycol mixture, mineral oils |
| Hysteresis | 4 °C - 5 °C |
| Housing material | Aluminum |
| Flow rate (l/min) | 167 |
| Flow rate (l/h) | 10.000 |
| Flow rate (m³/h) | 10 |
