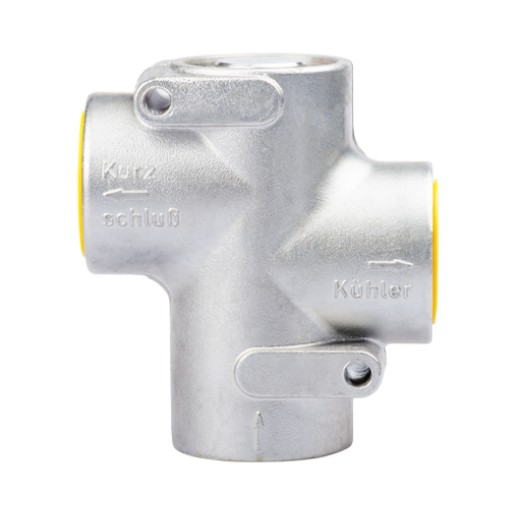

WAHLER oil temperature controller 60 °C - 7098.60
As part of Thermal Management Solutions, WAHLER offers a wide range of high-quality thermostats and oil temperature thermostats built to OE standards. With over 120 years of engineering expertise and more than six million units sold annually, WAHLER is one of the leading global brands in thermal management.
WAHLER oil temperature regulator 60 °C - type 7098
The WAHLER oil temperature regulator type 7098 with an opening temperature of 60 °C ensures precise and reliable control of oil and cooling circuits. A temperature-dependent wax element (thermostatic element) works inside, which expands when heated and actuates the regulator precisely. As a result, the oil flow is only directed via the cooler when the optimum operating temperature is reached. The robust aluminum housing and the pressure resistance up to 16 bar enable safe use in demanding industrial, hydraulic and vehicle applications. With its G 1" connection thread, the regulator can be flexibly integrated into a wide variety of systems.
Application areas
- Compressors
- Lubrication and cooling circuits
- Agricultural and construction machinery
- Hydraulic and industrial applications
Advantages
- Precise switching at 60 °C
- Pressure-independent, reliable control behavior
- Maintenance-free wax element/thermostatic element for a long service life
- Robust design, resistant to vibrations and load changes
| Controller type | 7098 |
| Opening temperature | 60 °C |
| Pressure resistance (bar) | 16 |
| Connection thread | G 1" |
| Temperature range (°C) | -40 °C to + 160 °C (unpressurized) |
| Control media | Water-glycol mixture, mineral oils |
| Hysteresis | 4 °C - 5 °C |
| Housing material | Aluminum |
| Flow rate (l/min) | 167 |
| Flow rate (l/h) | 10.000 |
| Flow rate (m³/h) | 10 |
