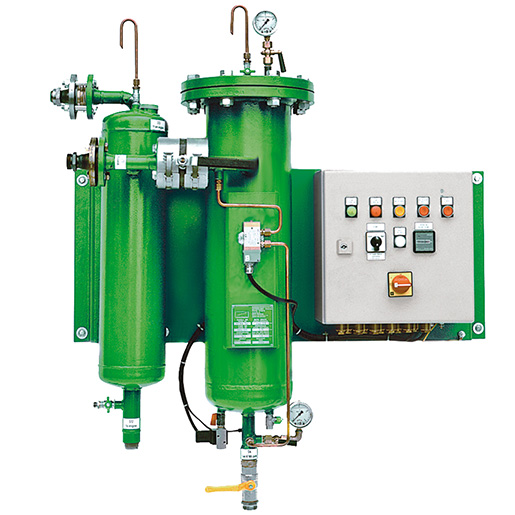

Filtration Group filter module KFWA 1 MAIN/PA000-A1A
Volume flow 800 l/h ,
operating pressure 3 bar,
without:
filter element
- feed frequency 50 HZ
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Pumping of fuel for the KFWA - plant (filter)
- Simple operation
- Low maintenance requirement
The KFWA is used for the filtration and separation of fuels. The system is supplied in two parts (pump module / maintenance module) for better adaptation to on-site conditions.
| Flow rate/volume flow pump aggr. (l/h) | 670 |
| Max. Operating pressure (bar) | 3 |
| Operating temperature | +2°C bis +45°C |
| Feed-in frequency (HZ) | 50 |
| Method of use | MAIN |
| Operating pressure (bar) | 3 |
| Color/coating | RAL 5019 |
| Element installation | NEIN |
| Supply voltage (V) | 400 |
| Acceptances | 3.1. |
