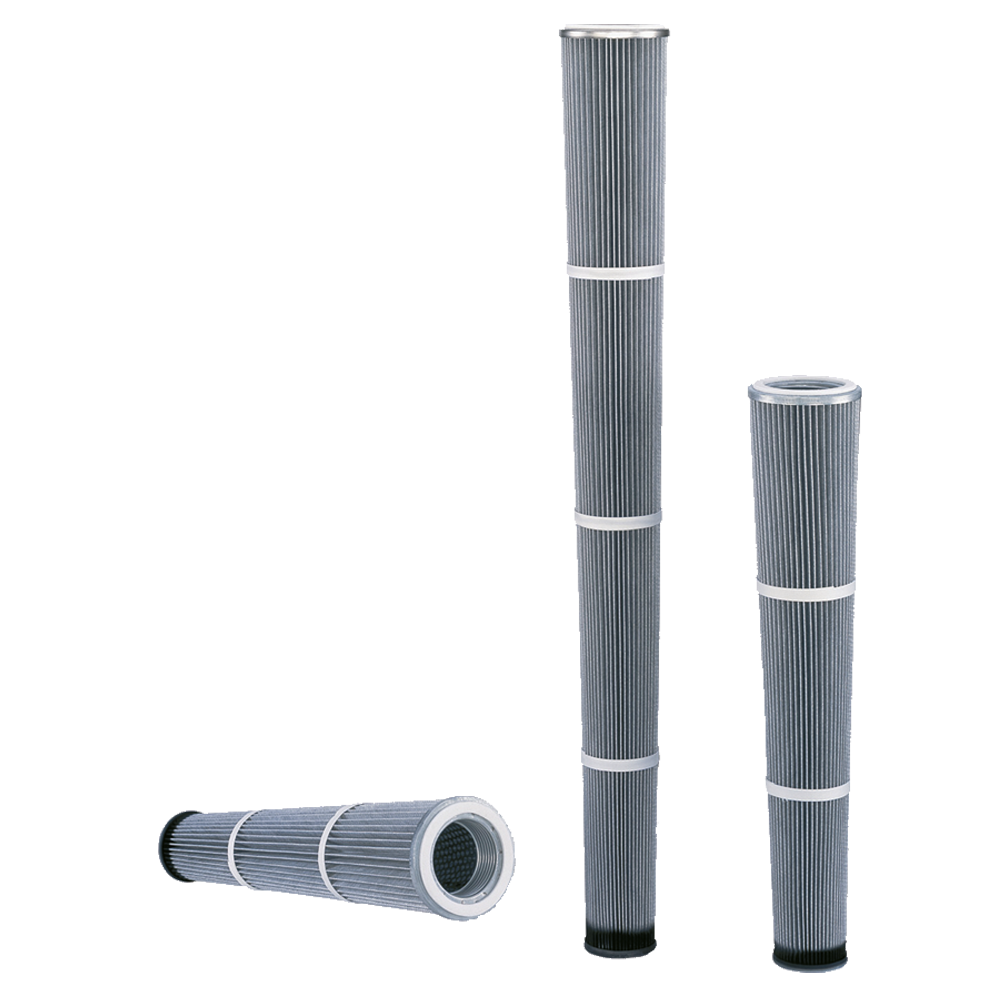

Filtration Group dust filter element 852 903 TI 07/1-1.0 V4A FOOD SF IFIX
Konisches Staubfilterelement
Durchmesser: 120 mm
Filterfläche: 1 m²
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
| Element type | 852 Series |
| Seal material | Silicone |
| Height (mm) | 600 |
| Outer diameter (mm) | 120 |
| Inner diameter (mm) | 68 |
| Filter area (cm²) | 10000 |
| Element shape | Conical |
| Installation | Raw gas side |
| Element fastening | Rd 72 x 5 |
| Wrinkle stabilisation | Ifix |
| End disc material | Endscheibe Edelstahl |
| Electrostatic discharge capability | yes |
