Filtration Group Dust Filter Element 852 052 TI 2011-7.5 Tape
Conical Dust Filter Element
Filter media: Polyester nonwoven fabric with stainless steel fibers and a PTFE membrane, electrically conductive
Filter area: 7.5 m²
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

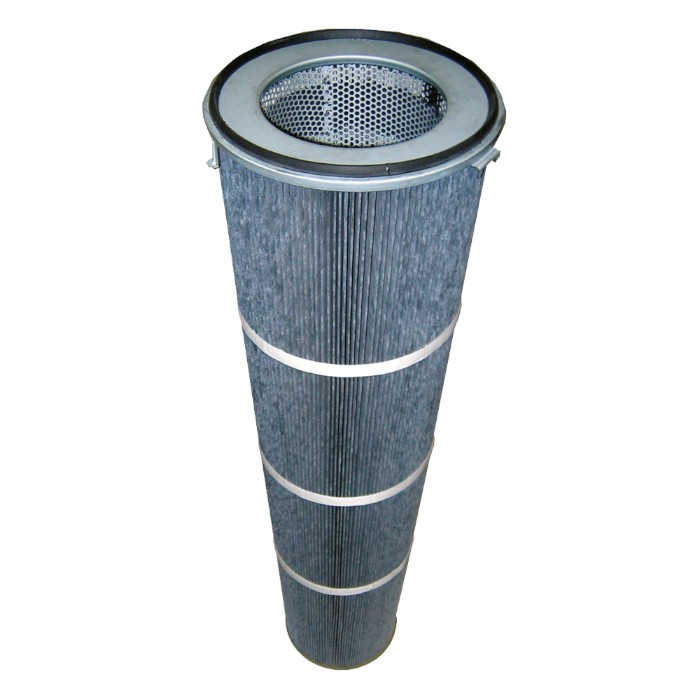

Filtration Group Dust Filter Element 852 052 TI 2011-7.5 Tape – conical dust filter element, Ø337 mm × 601 mm, 7.5 m² filter area
This conical dust filter element is designed for use in dust collection systems; it is installed on the raw gas side. It provides 7.5 m² of filter area with an outer diameter of 337 mm and a height of 601 mm.
The TI 2011 filter medium consists of polyester nonwoven fabric with stainless steel fibers and a PTFE membrane, and dissipates static charge. According to DIN EN 54345, the manufacturer specifies a discharge resistance of less than 1 × 106 Ω. Material thickness according to the data sheet: 0.6 mm. The pleats are additionally stabilized by a band.
According to the manufacturer, installation and removal are performed without tools using spring hooks; installation is possible on the raw gas side. This requires the Quick-Lock mounting kit on the filter plate, consisting of an element holder, two clamps, and screws. For elements with a band, the data sheet specifies a G1 multijet nozzle with 4 to 6 bar (max. 7 bar); the differential pressure is max. 15 mbar. Other versions of model number 852 052: TI 2011-7.5.
| Outer diameter (mm) | 337 |
| Electrostatic discharge capability | yes |
| Element fastening | Quicklock |
| Element shape | Conical |
| Element type | 852 Series |
| Wrinkle stabilisation | Banderole |
| Filter material | TI 2011 |
| Height (mm) | 601 |
| Inner diameter (mm) | 210 |
| Installation | Raw gas side |
| Medium | Air |
| Seal material | EPDM |
| Filter area (cm²) | 75000 |
