Filtration Group Dust Filter Element 852 062 TI 2011-12.5
Conical Dust Filter Element
Filter media: Polyester nonwoven fabric with stainless steel fibers and a PTFE membrane, electrically conductive
Filter area: 12.5 m²
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

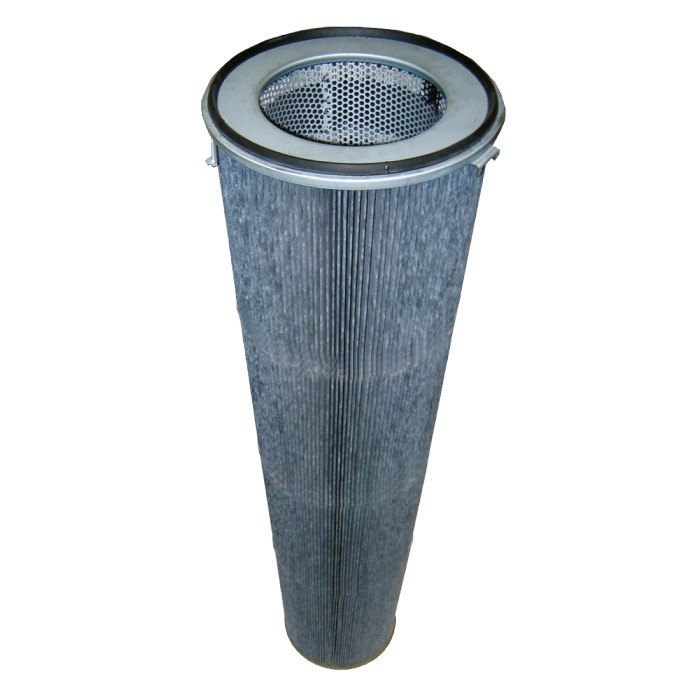

Filtration Group Dust Filter Element 852 062 TI 2011-12.5 – conical dust filter element, Ø337 mm × 986 mm, 12.5 m² filter area
The conical dust filter element seals against the filter basket of the dust collection system on the raw gas side. It provides 12.5 m² of filter area with an outer diameter of 337 mm and a height of 986 mm.
TI 2011 is the name of the electrostatically dissipative filter material made of polyester nonwoven fabric, stainless steel fibers, and a PTFE membrane. Its surface is white—which is otherwise uncommon for dissipative filter materials. According to the data sheet, the discharge resistance is less than 1 × 106 Ω (DIN EN 54345). Filtration occurs at the surface: the PTFE membrane is microporous. End cap: sheet metal end cap.
According to the manufacturer, the Quick-Lock system allows for tool-free installation and removal from the raw gas side. This requires the Quick-Lock mounting kit on the filter plate, consisting of an element holder, two clamps, and screws. Cleaning, according to the manufacturer: conical rotary air nozzle, 3 to 4 bar (max. 6 bar), differential pressure max. 15 mbar. For the same part number 852 062, the TI 2011-12.5 belt is also available.
| Outer diameter (mm) | 337 |
| Electrostatic discharge capability | yes |
| Element fastening | Quicklock |
| Element shape | Conical |
| Element type | 852 Series |
| End disc material | Sheet metal end plate |
| Filter material | TI 2011 |
| Height (mm) | 986 |
| Inner diameter (mm) | 210 |
| Installation | Raw gas side |
| Medium | Air |
| Seal material | EPDM |
| Filter area (cm²) | 125000 |
